Description
General part information

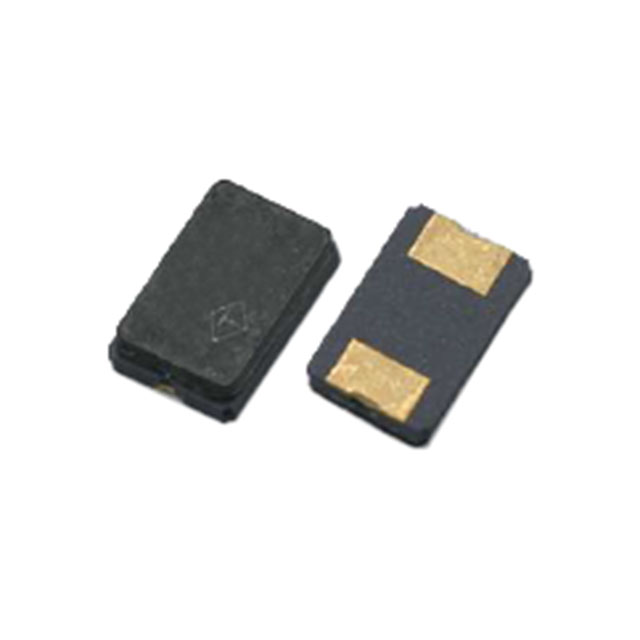

XSHEECNANF-25.000000
25 MHz ±30ppm Crystal 20pF 70 Ohms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | XSHEECNANF-25.000000 |
|---|---|
| ESR (Equivalent Series Resistance) | 70 Ohm |
| Frequency | 25 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.055 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | No Lead, 2-SMD |
| Package Length | 5 mm |
| Package Name | 2-SMD |
| Package Width | 3.2 mm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | MHz Crystal |
