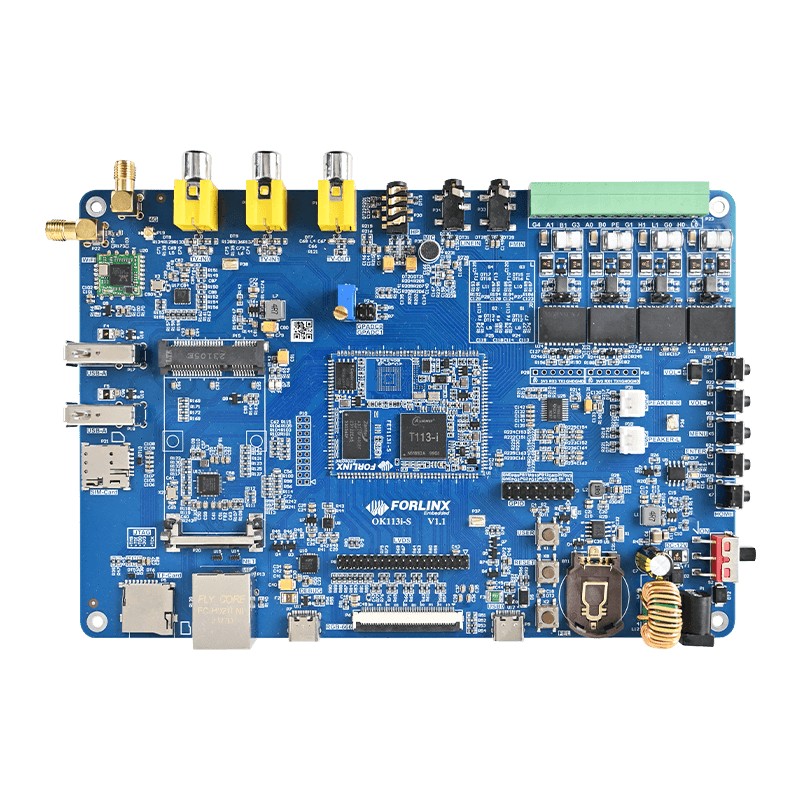

FORLINX-OK113i-S+12256SN256IA10I11
ActiveForlinx Embedded
ALLWINNER T113I,SBC, 256MB DDR3L
FORLINX-OK113i-S+12256SN256IA10I11
ActiveForlinx Embedded
ALLWINNER T113I,SBC, 256MB DDR3L
Description
General part information
FORLINX-OK113i-S+12256SN256IA10I11
ALLWINNER T113I,SBC, 256MB DDR3L
Technical Specifications
Parameters and characteristics for this part
| Specification | FORLINX-OK113i-S+12256SN256IA10I11 |
|---|---|
| Contents | Board |
| Cooling Type | Fan, Heat Spreader, Heat Sink |
| Core Processor | Dual-Core, ARM® Cortex®-A7 |
| Ethernet Ports | 1 |
| Form Factor | SBC |
| Maximum Ethernet Speed | 100 Mbps |
| Minimum Ethernet Speed | 10 Mbps |
| Number of Cores | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 3.3 W |
| RAM Capacity | 256 MB |
| Size / Dimension Length | 5.12 in |
| Size / Dimension Width | 7.48 in |
| Speed | 1.2 GHz |
| Storage Interface | NAND - Flash |
| Typical Ethernet Speed | 10 Mbps |
| USB | USB (4) |
| Video Outputs | RGB, LVDS |
| Watchdog Timer | Yes |
