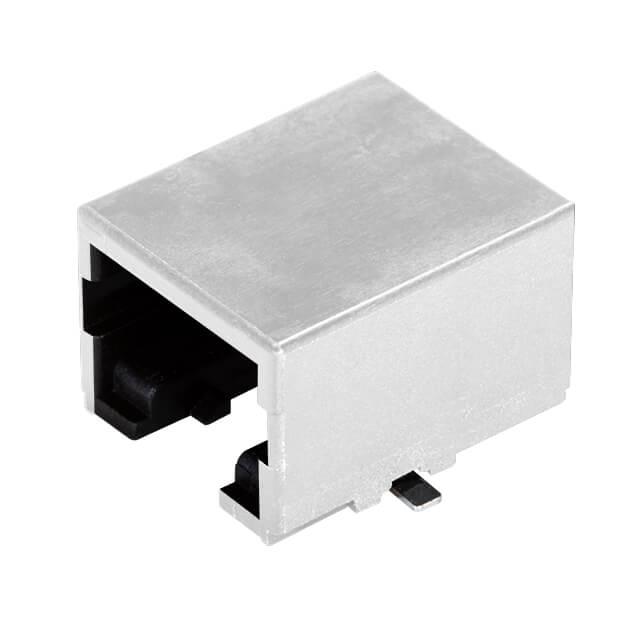

CRJ051-1-TH
ActiveSame Sky (Formerly CUI Devices)
RJ JACK, 1 PORT, 6P6C, 6U, SHIEL
CRJ051-1-TH
ActiveSame Sky (Formerly CUI Devices)
RJ JACK, 1 PORT, 6P6C, 6U, SHIEL
Description
General part information
CRJ051-1-TH
Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Shielded, EMI Finger
Technical Specifications
Parameters and characteristics for this part
| Specification | CRJ051-1-TH |
|---|---|
| Connector Type | Jack, RJ25, RJ11, RJ12, RJ14 |
| Contact Finish | Gold |
| Contact Finish Thickness | 6 µin |
| Contact Material | Phosphor Bronze |
| Housing Material | PBT, Polybutylene Terephthalate |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Contacts | 6 |
| Number of Ports | 1 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Down |
| Termination | Solder |
