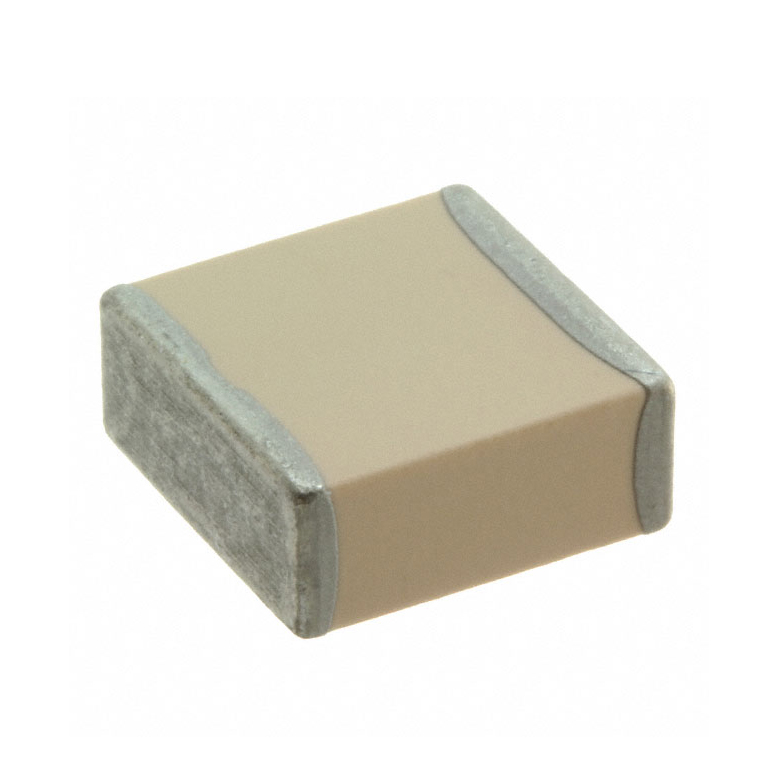

100E681JAR2500XJ16
ActiveKYOCERA AVX
CAP CER 680PF 2.5KV P90 3838
100E681JAR2500XJ16
ActiveKYOCERA AVX
CAP CER 680PF 2.5KV P90 3838
Description
General part information
100E681JAR2500XJ16
680 pF ±5% 2500V (2.5kV) Ceramic Capacitor P90 3838 (9797 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 100E681JAR2500XJ16 |
|---|---|
| Applications | RF, Bypass, Decoupling, High Frequency, Microwave |
| Capacitance | 680 pF |
| Features | Low ESL, High Voltage, Low Loss, High Q |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 3838 (9797 Metric) |
| Size / Dimension Length | 0.38 in |
| Size / Dimension Width | 0.38 in |
| Temperature Coefficient | P90 |
| Thickness (Max) | 0.17 in |
| Tolerance | 5 % |
| Voltage - Rated | 2.5 kV |
