DC0923848H2B-2T0
ActiveWakefield Thermal Solutions

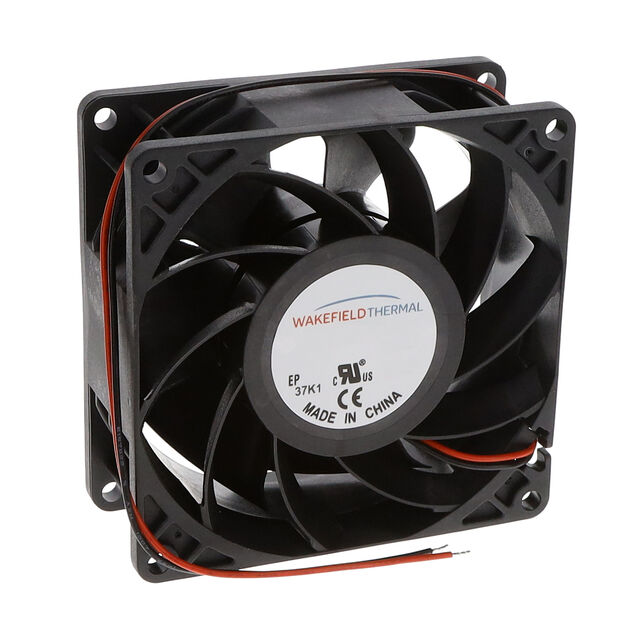

FAN 92X38MM 48VDC
DC0923848H2B-2T0
ActiveWakefield Thermal Solutions
FAN 92X38MM 48VDC
Description
General part information
DC0923848H2B-2T0
Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 123.6 CFM (3.46m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | DC0923848H2B-2T0 |
|---|---|
| Air Flow | 123.6 CFM |
| Approval Agency | cURus, CE |
| Bearing Type | Ball |
| Current Rating | 1.2 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Lifetime | 70000 Hrs |
| Material - Blade | Polybutylene Terephthalate, PBT, Glass Filled |
| Material - Frame | Glass Filled, Polybutylene Terephthalate (PBT) |
| Noise | 64 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 57.6 W |
| RPM | 6000 RPM |
| Size / Dimension Height | 92 mm |
| Size / Dimension Length | 92 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 1.12 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 48 VDC |
| Width | 38 mm |
