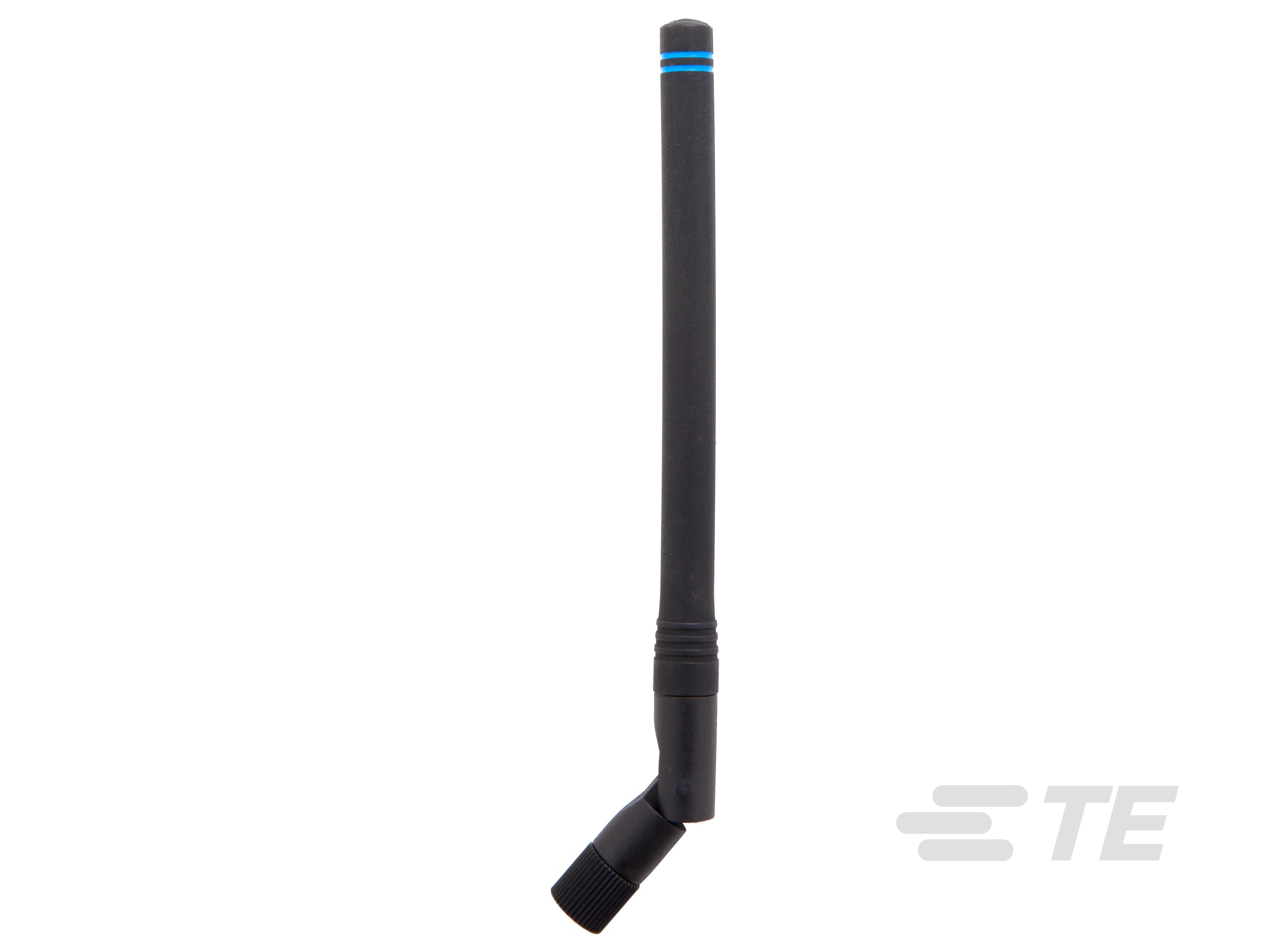

Specification	ANT-418-CW-HWR-SMA

Antenna Type	Tilt, Whip
Applications	Alarms, Remote Control, Security Systems, ISM
Frequency (Center/Band)	418 MHz
Frequency Group	UHF
Frequency Group Maximum (UHF)	1 GHz
Frequency Group Minimum (UHF)	300 MHz
Frequency Range (Max)	438 MHz
Frequency Range (Min)	398 MHz
Gain	0.7 dBi
Height (Max)	5.591 in
Mounting Type	Connector Mount
Number of Bands	1
RF Family/Standard	General ISM
Termination Type	SMA Male
VSWR	2

ANT-418 Series

Part	Mounting Type	Frequency Range (Max)	Frequency Range (Min)	Number of Bands	RF Family/Standard	Frequency Group Maximum (UHF)	Frequency Group	Frequency Group Minimum (UHF)	Height (Max)	Applications	Frequency (Center/Band)	VSWR	Termination Type	Antenna Type	Gain	Frequency (Center/Band)	Termination	Features	Frequency (Center)	Frequency (Band)
TE Connectivity AMP Connectors ANT-418-CW-QW-SMA	Connector Mount	450 MHz	380 MHz	1	General ISM	1 GHz	UHF	300 MHz	7.008 in	Alarms ISM Remote Control Security Systems	380MHz 410MHz 450MHz	1.9	SMA Male	Straight Whip	2.9 dBi
TE Connectivity AMP Connectors ANT-418-USP	Surface Mount	422 MHz	414 MHz	1	General ISM	1 GHz	UHF	300 MHz	0.103 in	Alarms ISM Remote Control Security Systems		1.9		Chip	-8.9 dBi	418 MHz	Solder
TE Connectivity AMP Connectors ANT-418-CW-RH	Connector Mount	423 MHz	413 MHz	1	General ISM	1 GHz	UHF	300 MHz	2.008 in	Alarms ISM Remote Control Security Systems		1.9	RP-SMA Male	Straight Whip	-6.7 dBi	418 MHz
TE Connectivity AMP Connectors ANT-418-CW-QW	Connector Mount	450 MHz	380 MHz	1	General ISM	1 GHz	UHF	300 MHz	7.008 in	Alarms ISM Remote Control Security Systems	380MHz 410MHz 450MHz	1.9	RP-SMA Male	Straight Whip	2.9 dBi
TE Connectivity AMP Connectors ANT-418-USP-T	Surface Mount	423 MHz	413 MHz	1	General ISM	1 GHz	UHF	300 MHz	0.103 in	Alarms ISM Remote Control Security Systems		2		Chip	-8.9 dBi	418 MHz	Solder
TE Connectivity AMP Connectors ANT-418-PW-QW-UFL	Panel Mount	450 MHz	380 MHz	1	General ISM	1 GHz	UHF	300 MHz	7.008 in	Alarms ISM Remote Control Security Systems		1.9	I-PEX MHF1 U.FL	Straight Whip	2.9 dBi	418 MHz	IPEX MHF1 U.FL (UMCC)	216mm Cable
TE Connectivity AMP Connectors ANT-418-MHW-RPS-S	Adhesive	428 MHz	408 MHz	1	General ISM	1 GHz	UHF	300 MHz	5.906 in	Alarms ISM Remote Control Security Systems		1.9	RP-SMA Male	Center-Fed Double Whip	2.1 dBi	418 MHz		2m Cable
TE Connectivity AMP Connectors ANT-418-PW-RA	Panel Mount	427 MHz	409 MHz	1	General ISM	1 GHz	UHF	300 MHz	5.18 in	Alarms ISM Remote Control Security Systems		2		Tilt Whip	2 dBi	418 MHz	Screw-Mount
TE Connectivity AMP Connectors ANT-418-WRT-RPS	Panel Mount	426 MHz	409 MHz	1	General ISM	1 GHz	UHF	300 MHz	1.063 in	Alarms ISM Remote Control Security Systems		1.9	RP-SMA Male	Dome	-1.3 dBi			216mm Cable	400 MHz	410 MHz
TE Connectivity AMP Connectors ANT-418-CW-RAH	Connector Mount	426 MHz	410 MHz	1	General ISM	1 GHz	UHF	300 MHz	1.85 in	Alarms ISM Remote Control Security Systems		1.9	RP-SMA Male	Right Angle Whip	-6.1 dBi	418 MHz
