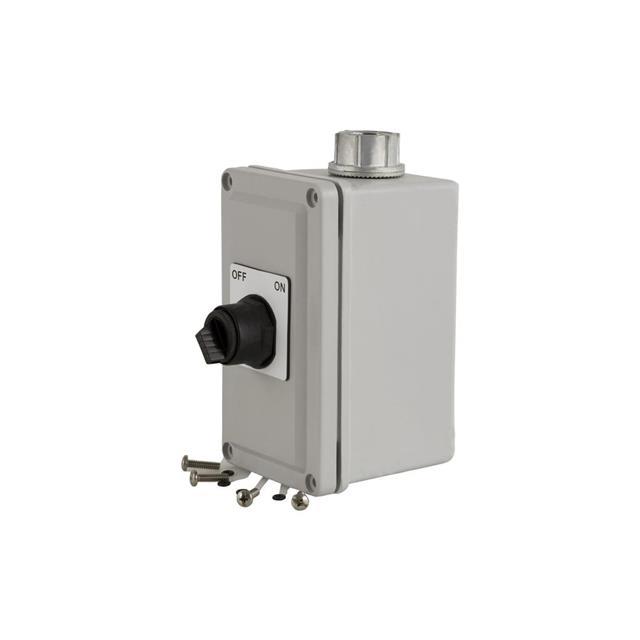

9001SKY110
ObsoleteSCHNEIDER ELECTRIC
SWITCH SELECT 2POS DPST 10A 600V
9001SKY110
ObsoleteSCHNEIDER ELECTRIC
SWITCH SELECT 2POS DPST 10A 600V
Description
General part information
9001SKY110
Selector Switch 2 Position DPST-NO/NC 10A (AC) 600 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001SKY110 |
|---|---|
| Approval Agency | UL |
| Circuit | DPST-NO/NC |
| Current Rating | 10 A |
| Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 600 VAC |
