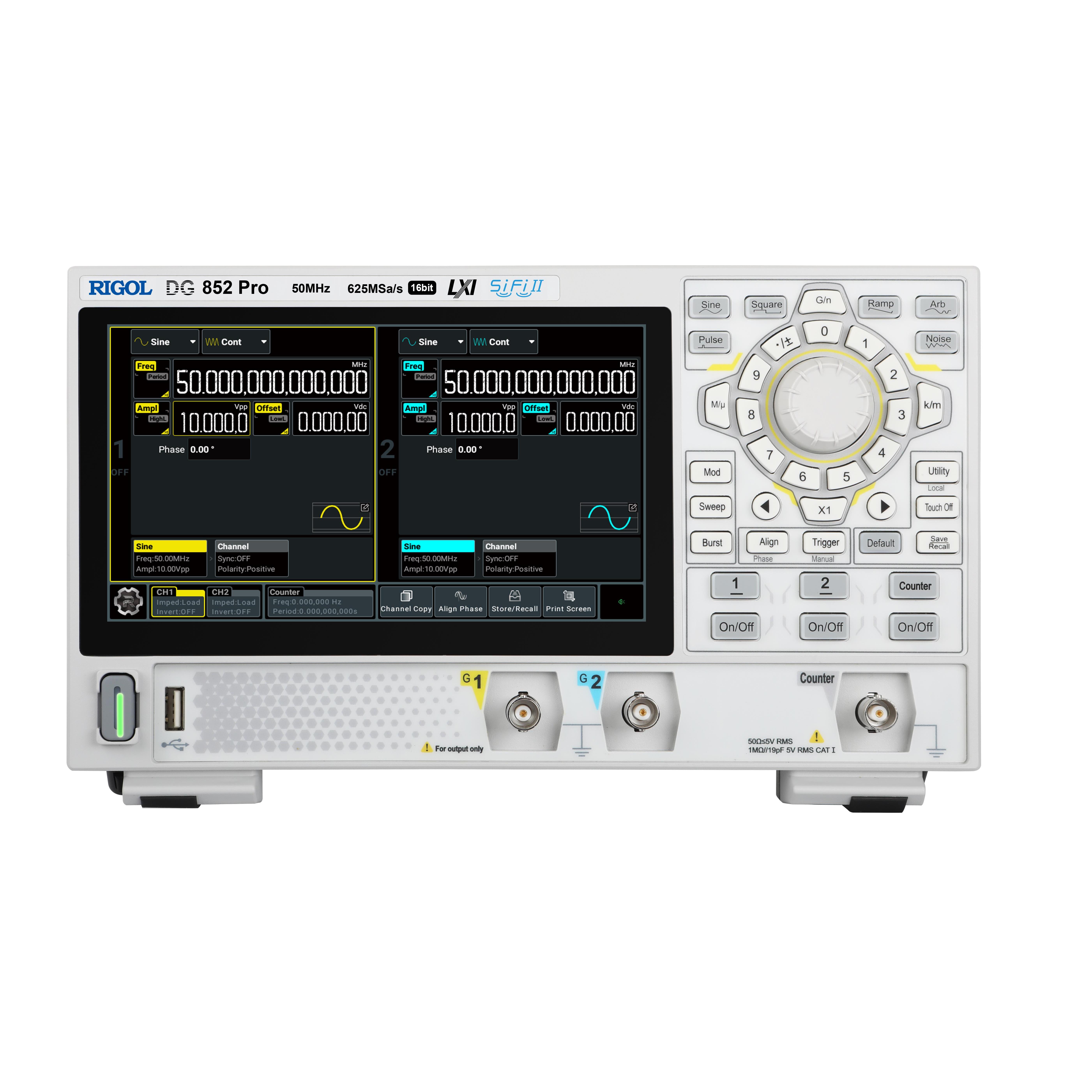

DG852 Pro
DG852 PRO is a DG800 Pro series, 2 channel, 50MHz bandwidth function/arbitrary waveform generator. DG800 pro series function/arbitrary waveform generator provides up to 625MSa/s sample rate and 2Mpts/CH memory depth (standard). It is a cost-effective function/arbitrary waveform generator that combines multiple functions including function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analogue/digital modulator and counter.
Technical Specifications
Parameters and characteristics for this part
| Specification | DG852 Pro |
|---|---|
| Display Type | LCD |
| Frequency - Max | 50 MHz |
| Function | Sweep, Arbitrary |
| Number of Channels | 2 |
| Signal Types | Square, Pulse, Ramp, Sine, Triangle |
| Supply Voltage | 15 V |
| Type | Pulse Generator |
