MAL219847181E3
ActiveVishay Dale

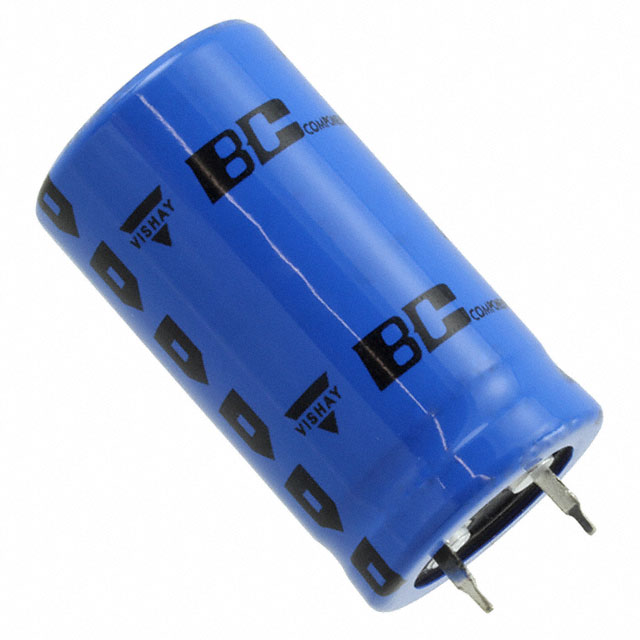

CAP ALUM 180UF 20% 450V SNAP TH
MAL219847181E3
ActiveVishay Dale
CAP ALUM 180UF 20% 450V SNAP TH
Description
General part information
MAL219847181E3
180 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 531mOhm @ 100Hz 15000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL219847181E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 180 µF |
| ESR (Equivalent Series Resistance) | 531 mOhm |
| Height - Seated (Max) | 1.654 in |
| Impedance | 400 mOhms |
| Lead Spacing | 0.394 in |
| Lifetime | 15000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 1.47 A |
| Size / Dimension Diameter | 0.984 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
