25013 BK005

Active

ALPHA WIRE

CABLE 3COND 24AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 24AWG BLACK 100'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

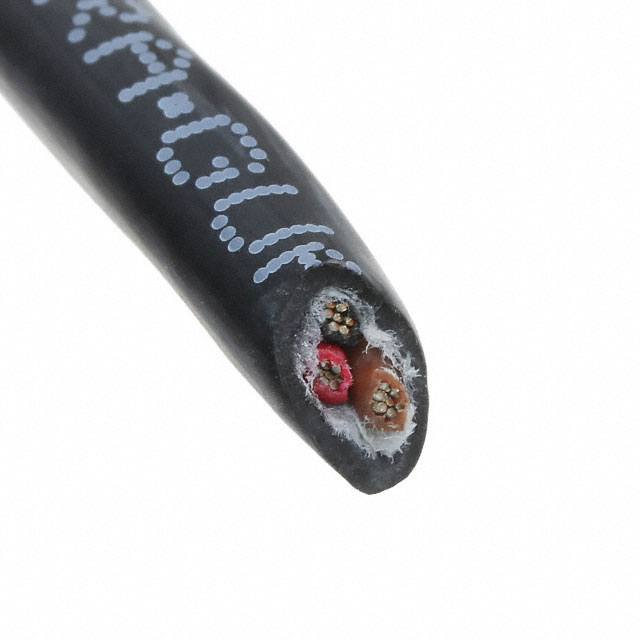

3 Conductor Multi-Conductor Cable Black 24 AWG 100.0' (30.5m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	25013 BK005	25013 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Rip Cord, Biological Compatibility	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	4.14 mm	4.14 mm
Jacket (Insulation) Diameter [diameter]	0.163 in	0.163 in
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black, Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	3	3
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

CABLE 3COND 24AWG BLACK 100'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Cable Type	Features	Jacket (Insulation) Material	Ratings	Wire Gauge	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket Color	Length	Length
ALPHA WIRE 25013 BK005	4.14 mm	0.163 in	3	Multi-Conductor	Biological Compatibility, Rip Cord	Polyurethane (PU)	ISO 10993, UL Style 20668	24 AWG	30.5 m	100 ft	32 AWG	7	Poly-Vinyl Chloride (PVC)	300 V	-30 ░C	90 °C	Copper, Tinned	Black
ALPHA WIRE 25013 SL199	4.14 mm	0.163 in	3	Multi-Conductor	Biological Compatibility, Rip Cord	Polyurethane (PU)	ISO 10993, UL Style 20668	24 AWG			32 AWG	7	Poly-Vinyl Chloride (PVC)	300 V	-30 ░C	90 °C	Copper, Tinned	Slate	1000 ft	304.8 m
