095-850-306M30L
ActiveMcGill Microwave Systems
CBL ASSY RPTNC-TNC PLUG-PLUG 30M
095-850-306M30L
ActiveMcGill Microwave Systems
CBL ASSY RPTNC-TNC PLUG-PLUG 30M
Description
General part information
095-850-306M30L

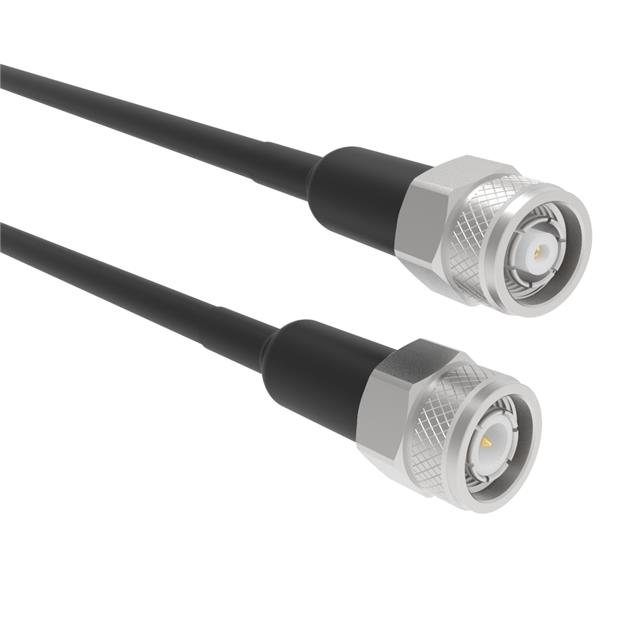

Cable Assembly Coaxial RP-TNC to TNC LMR 240 1181.1" (30.0m) 98.4'
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-850-306M30L |
|---|---|
| 1st Connector | RP-TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 240 |
| Color | Black |
| Frequency - Max | 6000 MHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 98.425 ft |
| Overall Impedance | 50 Ohms |
| Style | TNC, RP-TNC |
