2081598-1
ActiveTE Connectivity AMP Connectors

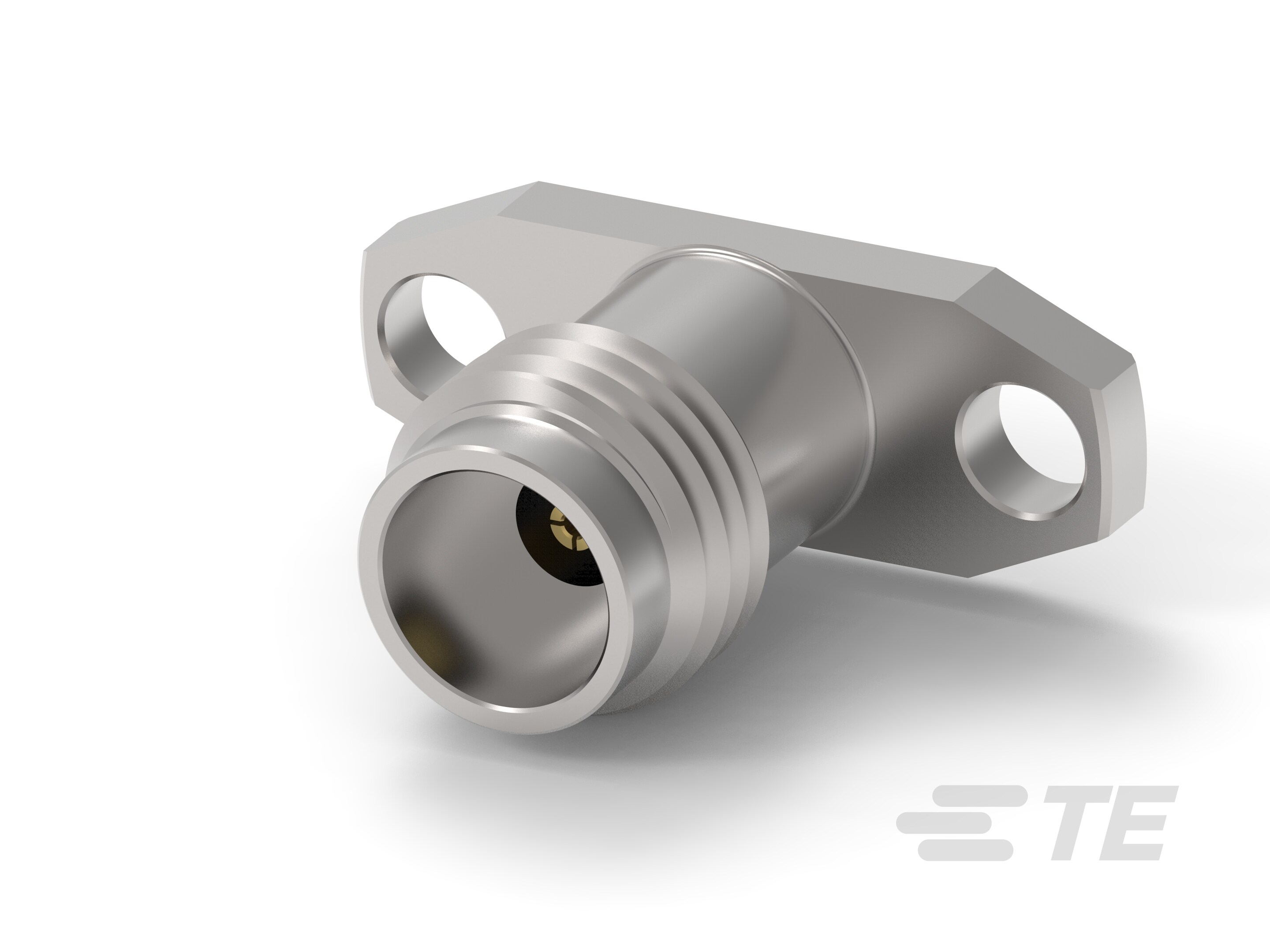

RF CONNECTORS / COAXIAL CONNECTORS 2.4MM JACK 2-HOLE FLANGE RECEPTACLE
2081598-1
ActiveTE Connectivity AMP Connectors
RF CONNECTORS / COAXIAL CONNECTORS 2.4MM JACK 2-HOLE FLANGE RECEPTACLE
Description
General part information
2081598-1
2.4mm Series Connector, Jack, 50 ohm, Screw, 50 GHz, Cable-to-Board, 1 Position, Wire & Cable, Panel Mount, -55 – 125 °C [-67 – 257 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2081598-1 |
|---|---|
| Center Contact Material | Beryllium Copper |
| Connector Plug Diameter | 2.4 mm |
| Connector Style | APC-2.4, OS-50 |
| Connector Type | Jack, Female Socket |
| Contact Termination | Compression |
| Fastening Type | Threaded |
| Frequency - Max | 50 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Shield Termination | Screw |
