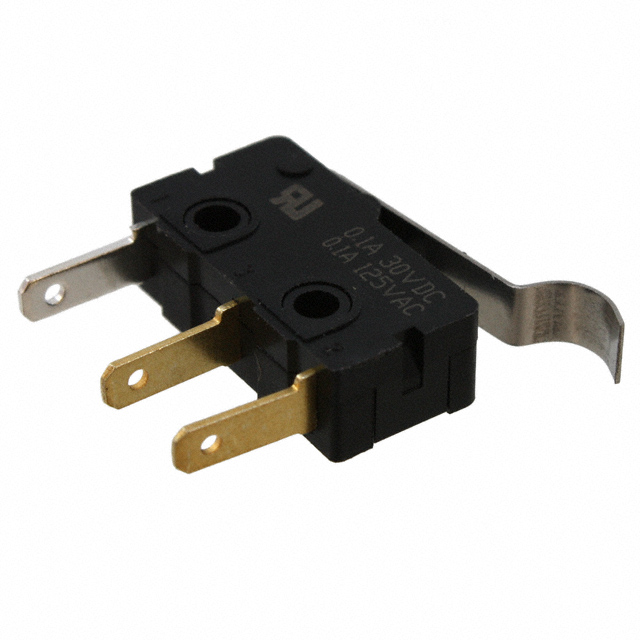

ZM10B70E01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Z Series Install Instr

ZM10B70E01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

DocumentsDatasheet Z Series Install Instr

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.96

Description

General part information

ZM10 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Datasheet

Z Series Install Instr

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZM10B70E01	ZM10 Series

Actuator Type	Simulated Roller, Lever	Simulated Roller, Lever, Roller, Lever, Straight
Circuit	SPDT	SPDT, SPST-NO
Current Rating (Amps)	100 mA	100 mA
Differential Travel	-	0.8 mm
Differential Travel	-	0.031 "
Electrical Life	10000 Cycles	10000 Cycles
Features	-	Actuator Mounted Left Side
Ingress Protection	-	IP40
Mechanical Life	10000000 Cycles	1000000 - 10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount, Through Hole, Right Angle, Through Hole
Operating Force	16 gf	14 - 36 gf
Operating Position	15.1 mm	15.1 mm
Operating Position	0.594 "	0.594 "
Operating Position	-	0.35 in
Operating Position	-	8.9 mm
Operating Temperature [Max]	120 °C	120 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.6 mm	0.6 - 0.76 mm
Overtravel	0.025 "	0.024 - 0.03 "
Pretravel	0.205 in	0.157 - 0.24 in
Pretravel	5.2 mm	4 - 6.1 mm
Release Force	3 gf	2 - 6 gf
Switch Function	On-Mom	On-Mom, Off-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm), Solder Lug, PC Pin
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

ZM10 Series

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Operating Position	Operating Position	Pretravel	Pretravel	Mounting Type	Mechanical Life	Current Rating (Amps)	Operating Force	Termination Style	Release Force	Voltage Rating - DC	Overtravel	Overtravel	Circuit	Electrical Life	Actuator Type	Switch Function	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Features	Operating Position [x]	Operating Position [x]	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions ZM10B70E01	15.1 mm	0.594 "	0.205 in	5.2 mm	Chassis Mount	10000000 Cycles	100 mA	16 gf	Quick Connect - 0.110" (2.8mm)	3 gf	30 V	0.6 mm	0.025 "	SPDT	10000 Cycles	Lever, Simulated Roller	On-Mom	125 V	-40 °C	120 °C
Honeywell Sensing and Productivity Solutions ZM10E10F03					Chassis Mount	1000000 Cycles	100 mA		Solder Lug					SPST-NO		Lever, Roller	Off-Mom	125 V	-40 °C	125 °C	IP40
Honeywell Sensing and Productivity Solutions ZM10E60E01					Through Hole, Right Angle	1000000 Cycles	100 mA		PC Pin					SPDT		Lever, Simulated Roller	On-Mom	125 V	-40 °C	125 °C	IP40	Actuator Mounted Left Side
Honeywell Sensing and Productivity Solutions ZM10D20D01			0.24 in	6.1 mm	Through Hole	10000000 Cycles	100 mA	20 gf	PC Pin		30 V	0.76 mm	0.03 in	SPDT	10000 Cycles	Lever, Straight	On-Mom	125 V	-40 °C	120 °C			0.35 in	8.9 mm
Honeywell Sensing and Productivity Solutions ZM10E20C01			0.157 in	4 mm	Through Hole	1000000 Cycles	100 mA	36 gf	PC Pin	6 gf		0.6 mm	0.024 in	SPDT		Lever, Straight	On-Mom	125 V	-40 °C	125 °C	IP40				0.8 mm	0.031 "
Honeywell Sensing and Productivity Solutions ZM10B70C01			0.157 in	4 mm	Chassis Mount	1000000 Cycles	100 mA	14 gf	Quick Connect - 0.110" (2.8mm)	2 gf		0.6 mm	0.024 in	SPDT		Lever, Straight	On-Mom	125 V	-40 °C	125 °C	IP40				0.8 mm	0.031 "
Honeywell Sensing and Productivity Solutions ZM10D10D01			0.24 in	6.1 mm	Chassis Mount	10000000 Cycles	100 mA	20 gf	Solder Lug		30 V	0.76 mm	0.03 in	SPDT	10000 Cycles	Lever, Straight	On-Mom	125 V	-40 °C	120 °C			0.35 in	8.9 mm
Honeywell Sensing and Productivity Solutions ZM10D10E01			0.205 in	5.2 mm	Chassis Mount	1000000 Cycles	100 mA	26 gf	Solder Lug			0.6 mm	0.024 in	SPDT		Lever, Simulated Roller	On-Mom	125 V	-40 °C	125 °C	IP40
