XB7EV07MP
ActiveLED PANEL MOUNT INDICATOR, PILOT LIGHT, TRANSPARENT, 230 VAC, 22 MM, 20 MA, IP20, IP65
XB7EV07MP
ActiveLED PANEL MOUNT INDICATOR, PILOT LIGHT, TRANSPARENT, 230 VAC, 22 MM, 20 MA, IP20, IP65
Description
General part information
XB7EV07MP

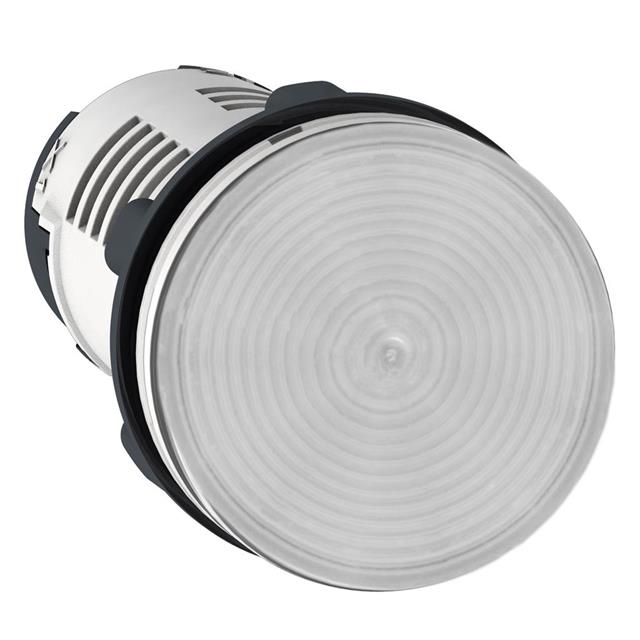

The XB7EV07MP is a round Pilot Light with panel mounting, IP20 and IP65 NEMA rating, transparent/clear color and round-shaped lens Monolithic pilot light type, 22mm mounting diameter, integral LED bulb base and TH protective treatment.
Technical Specifications
Parameters and characteristics for this part
| Specification | XB7EV07MP |
|---|---|
| Current (Max) | 20 mA |
| Current (Min) | 16 mA |
| Ingress Protection | NEMA 4, IP20, 12, IP65 |
| Lens Color | Clear |
| Lens Diameter | 29 mm |
| Lens Style | Round, Flat Top |
| Panel Cutout Dimension | 0.89 " |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage (Max) | 240 V |
| Voltage (Min) | 230 V |
