LRW0402WK3N9GG001T
ActiveJohanson Technology Inc.
FIXED IND 3.9NH 840MA 66MOHM SMD
LRW0402WK3N9GG001T
ActiveJohanson Technology Inc.
FIXED IND 3.9NH 840MA 66MOHM SMD
Description
General part information
LRW0402WK3N9GG001T

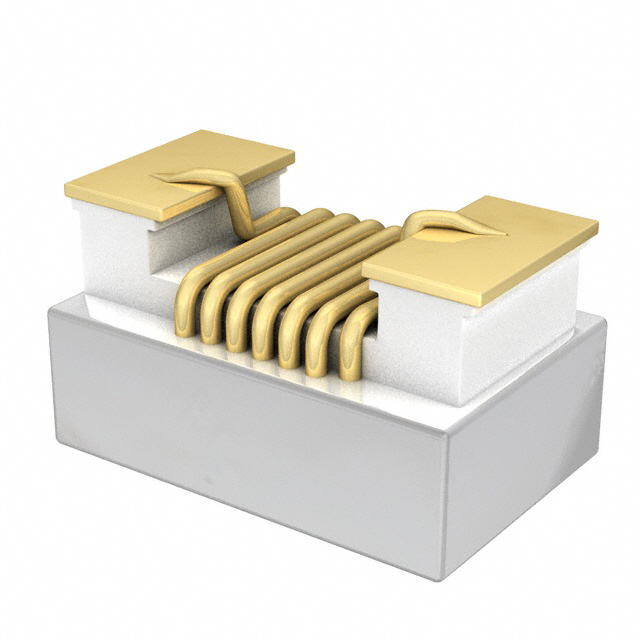

3.9 nH Unshielded Drum Core, Wirewound Inductor 840 mA 66mOhm Max 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | LRW0402WK3N9GG001T |
|---|---|
| Current Rating | 0.84 A |
| DC Resistance (DCR) (Max) | 66 mOhm |
| Frequency - Self Resonant | 5.8 GHz |
| Height - Seated (Max) | 0.024 in |
| Inductance | 3.9 nH |
| Inductance Frequency - Test | 250 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 0402 (1005 Metric) |
| Q | 60 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.022 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
