GX-304S-B-N
ActivePanasonic Industrial Automation Sales
SENSOR M4 SHIELD NPN NC
GX-304S-B-N
ActivePanasonic Industrial Automation Sales
SENSOR M4 SHIELD NPN NC
Description
General part information
GX-304S-B-N

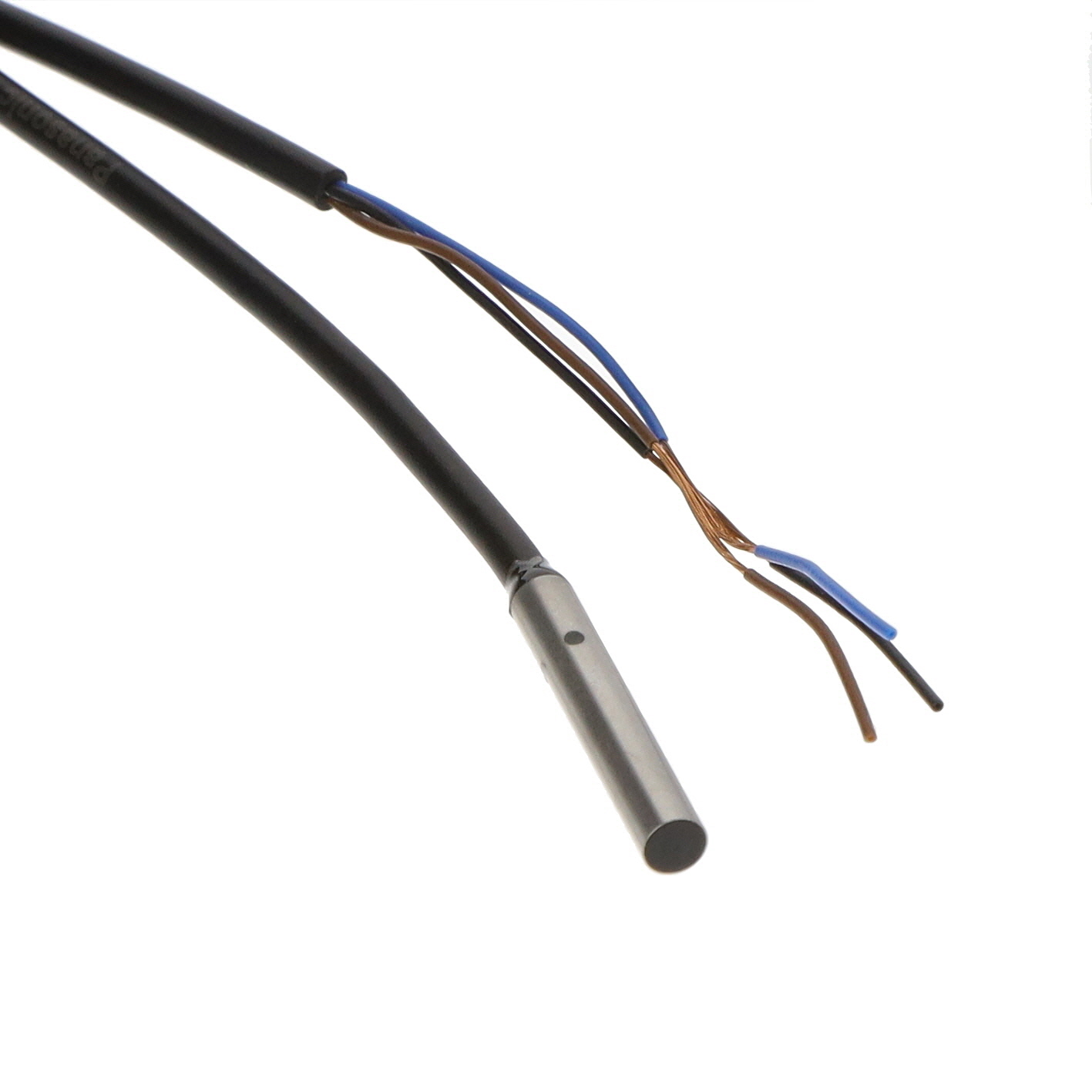

Inductive Proximity Sensor 0.033" (0.84mm) IP67 Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | GX-304S-B-N |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NPN-NC, 3-Wire |
| Package / Case | Cylinder |
| Response Frequency | 4 kHz |
| Sensing Distance | 0.033 " |
| Sensor Type | Inductive |
| Shielding | Shielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
