AS1312-BTDM-33

Active

Austria Micro

SWITCHING REGULATOR, PDSO8

Search across all available documentation for this part.

Active

Austria Micro

SWITCHING REGULATOR, PDSO8

Technical Specifications

Parameters and characteristics for this part

SWITCHING REGULATOR, PDSO8

Part	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Outputs	Output Type	Voltage - Output (Min/Fixed)	Current - Output	Mounting Type	Topology	Function	Output Configuration	Voltage - Input (Min) [Min]	Package / Case	Synchronous Rectifier

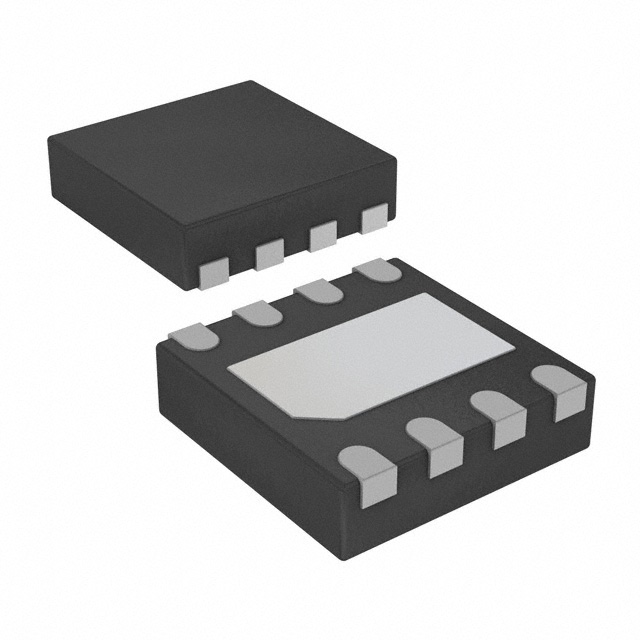

Austria Micro AS1312-BTDM-33	5 V	85 °C	-40 °C	8-TDFN (2x2)	1	1.81 mOhm	3.3 V	400 mA	Surface Mount	Boost	Step-Up	Positive	0.7 V	8-UFDFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Boost Switching Regulator IC Positive Fixed 3.3V 1 Output 400mA (Switch) 8-UFDFN Exposed Pad
