PK605-320-320-4.5

Active

Shiu Li Technology Co., Ltd.

THERM PAD 320X320MM RED

Deep-Dive with AI

Search across all available documentation for this part.

PK605-320-320-4.5

Active

Shiu Li Technology Co., Ltd.

THERM PAD 320X320MM RED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 349.50
		10	$ 309.94
		25	$ 295.43

Description

General part information

PK605 Series

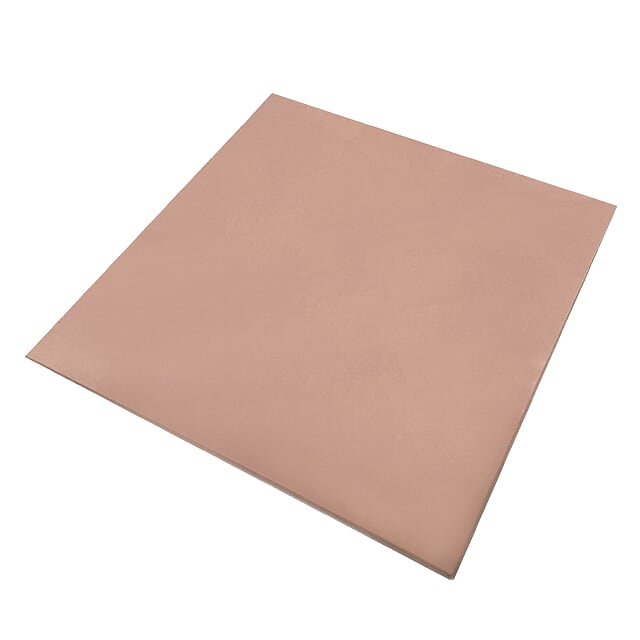

Thermal Pad Red 320.00mm x 320.00mm Square Tacky - Both Sides

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PK605-320-320-4.5	PK605 Series

Adhesive	Tacky - Both Sides	Tacky - Both Sides
Color	Red	Red
Outline [x]	320 mm	160 - 320 mm
Outline [y]	320 mm	160 - 320 mm
Shape	Square	Square
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Shipment	Date of Shipment
Storage/Refrigeration Temperature	Room Temperature	Room Temperature
Thermal Conductivity	6 W/m-K	6 W/m-K
Thickness	-	0.508 - 5 mm
Thickness	-	0.02 - 0.197 "
Thickness [custom]	4.5 mm	4.5 mm
Thickness [custom]	0.177 in	0.177 in
Type	Gap Filler Pad, Sheet	Gap Filler Pad, Sheet

PK605 Series

THERM PAD 320X320MM RED

Part	Type	Adhesive	Outline [x]	Outline [y]	Storage/Refrigeration Temperature	Color	Shelf Life	Thermal Conductivity	Thickness	Thickness	Shape	Shelf Life Start
Shiu Li Technology Co., Ltd. PK605-320-320-1.5	Gap Filler Pad, Sheet	Tacky - Both Sides	320 mm	320 mm	Room Temperature	Red	120 Months	6 W/m-K	1.5 mm	0.0591 "	Square	Date of Shipment
Shiu Li Technology Co., Ltd. PK605-160-160-2.5	Gap Filler Pad, Sheet	Tacky - Both Sides	160 mm	160 mm	Room Temperature	Red	120 Months	6 W/m-K	2.489 mm	0.098 in	Square	Date of Shipment
Shiu Li Technology Co., Ltd. PK605-160-160-5.0	Gap Filler Pad, Sheet	Tacky - Both Sides	160 mm	160 mm	Room Temperature	Red	120 Months	6 W/m-K	5 mm	0.197 "	Square	Date of Shipment
Shiu Li Technology Co., Ltd. PK605-160-160-0.5	Gap Filler Pad, Sheet	Tacky - Both Sides	160 mm	160 mm	Room Temperature	Red	120 Months	6 W/m-K	0.508 mm	0.02 in	Square	Date of Shipment
Shiu Li Technology Co., Ltd. PK605-320-320-0.5	Gap Filler Pad, Sheet	Tacky - Both Sides	320 mm	320 mm	Room Temperature	Red	120 Months	6 W/m-K	0.508 mm	0.02 in	Square	Date of Shipment
Shiu Li Technology Co., Ltd. PK605-320-320-3.0	Gap Filler Pad, Sheet	Tacky - Both Sides	320 mm	320 mm	Room Temperature	Red	120 Months	6 W/m-K	3 mm	0.118 in	Square	Date of Shipment
Shiu Li Technology Co., Ltd. PK605-160-160-4.0	Gap Filler Pad, Sheet	Tacky - Both Sides	160 mm	160 mm	Room Temperature	Red	120 Months	6 W/m-K	4 mm	0.157 in	Square	Date of Shipment
Shiu Li Technology Co., Ltd. PK605-160-160-2.0	Gap Filler Pad, Sheet	Tacky - Both Sides	160 mm	160 mm	Room Temperature	Red	120 Months	6 W/m-K	2 mm	0.079 in	Square	Date of Shipment
Shiu Li Technology Co., Ltd. PK605-320-320-2.0	Gap Filler Pad, Sheet	Tacky - Both Sides	320 mm	320 mm	Room Temperature	Red	120 Months	6 W/m-K	2 mm	0.079 in	Square	Date of Shipment
Shiu Li Technology Co., Ltd. PK605-320-320-4.0	Gap Filler Pad, Sheet	Tacky - Both Sides	320 mm	320 mm	Room Temperature	Red	120 Months	6 W/m-K	4 mm	0.157 in	Square	Date of Shipment
