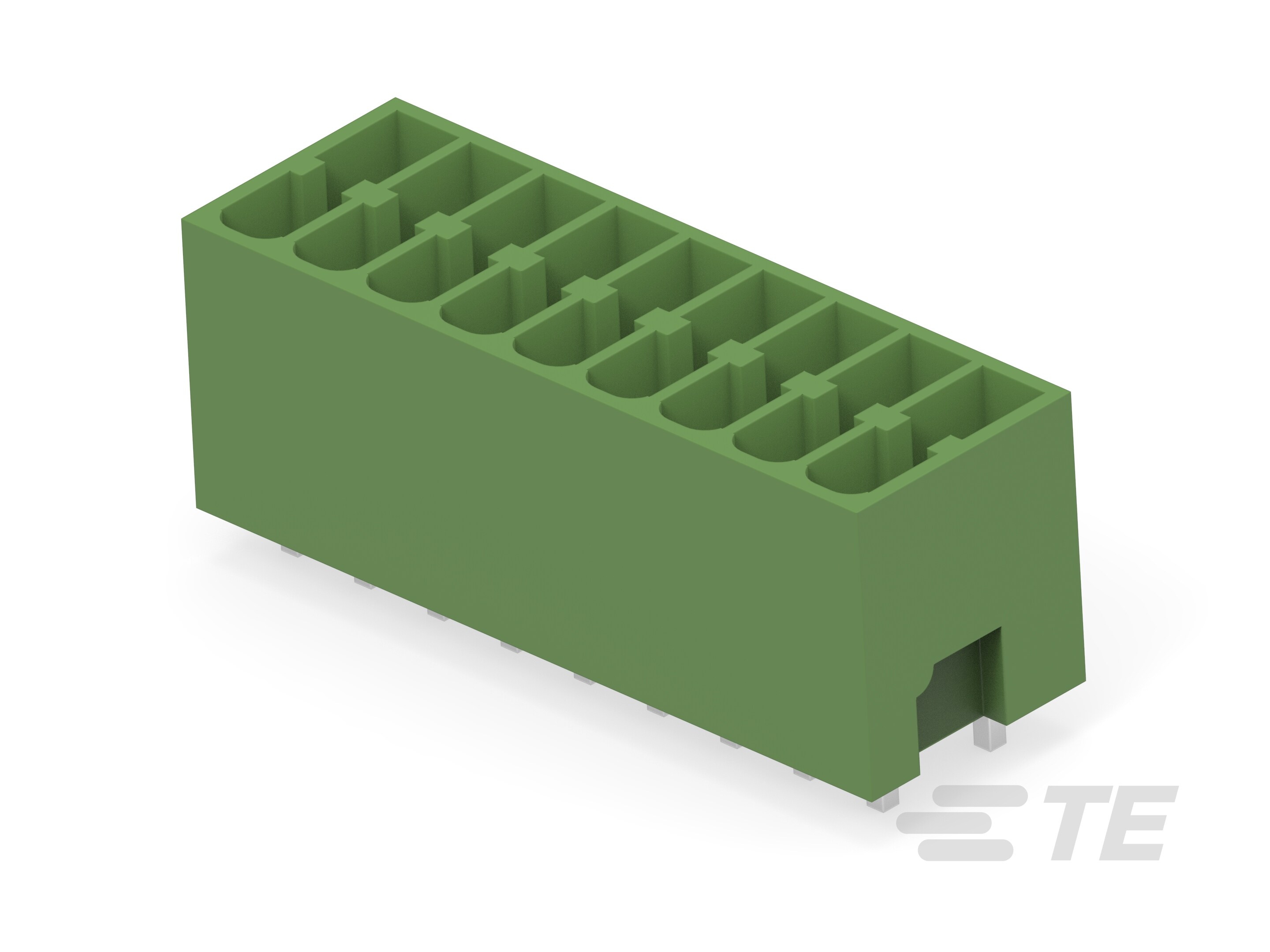

18P TB DR HDR 150 DEG,PITCH 3.5-1-2385015-8

1-2385015-8

Active
TE Connectivity AMP Connectors

18P TB DR HDR 150 DEG,PITCH 3.5

Find alt
18P TB DR HDR 150 DEG,PITCH 3.5-1-2385015-8

1-2385015-8

Active
TE Connectivity AMP Connectors

18P TB DR HDR 150 DEG,PITCH 3.5

Find alt

Description

General part information

1-2385015-8

18 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.138 in] Centerline, 2 Row, 150 VAC, Printed Circuit Board, Vertical

Technical Specifications

Parameters and characteristics for this part

Specification1-2385015-8
ColorGreen
Contact Mating FinishTin
Current - UL8 A
Header OrientationVertical
Mounting TypeThrough Hole
Number of Levels2
Number of Positions18
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch0.138 in
Positions Per Level9
Termination StyleSolder
TypeShrouded (4 Side), Male Pins, Header
Voltage - UL150 V
