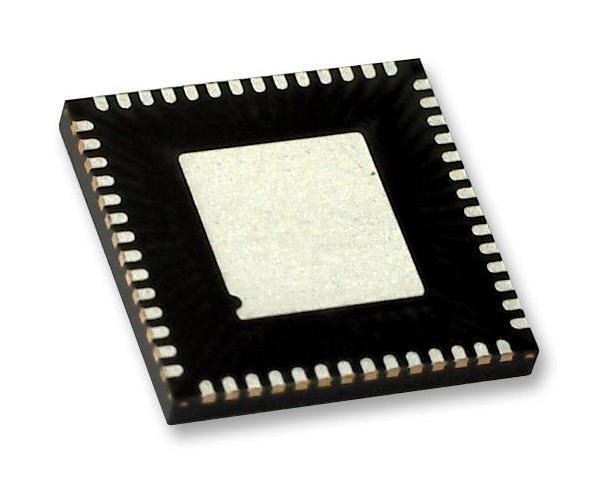

PTN3460BS/F4Y
ActiveNXP USA Inc.
INTERFACE BRIDGES, EDP TO LVDS, 3 V, 3.6 V, HVQFN-EP, 56 PINS, 0 °C
PTN3460BS/F4Y
ActiveNXP USA Inc.
INTERFACE BRIDGES, EDP TO LVDS, 3 V, 3.6 V, HVQFN-EP, 56 PINS, 0 °C
Description
General part information
PTN3460BS/F4Y
Embedded microcontroller and on-chip Non-Volatile Memory (NVM) allow for flexibilityin firmware updates
LVDS panel power-up (/down) sequencing control
Firmware controlled panel power-up (/down) sequence timing parameters
Technical Specifications
Parameters and characteristics for this part
| Specification | PTN3460BS/F4Y |
|---|---|
| Applications | LVDS |
| Mounting Type | Surface Mount |
| Package / Case | 56-VFQFN Exposed Pad |
| Package Length | 7 mm |
| Package Name | 56-HVQFN |
| Package Width | 7 mm |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
