ELS410E2HD
ActiveTE Connectivity AMP Connectors
ELS410E2HD=RELAY
ELS410E2HD
ActiveTE Connectivity AMP Connectors
ELS410E2HD=RELAY
Description
General part information
ELS410E2HD

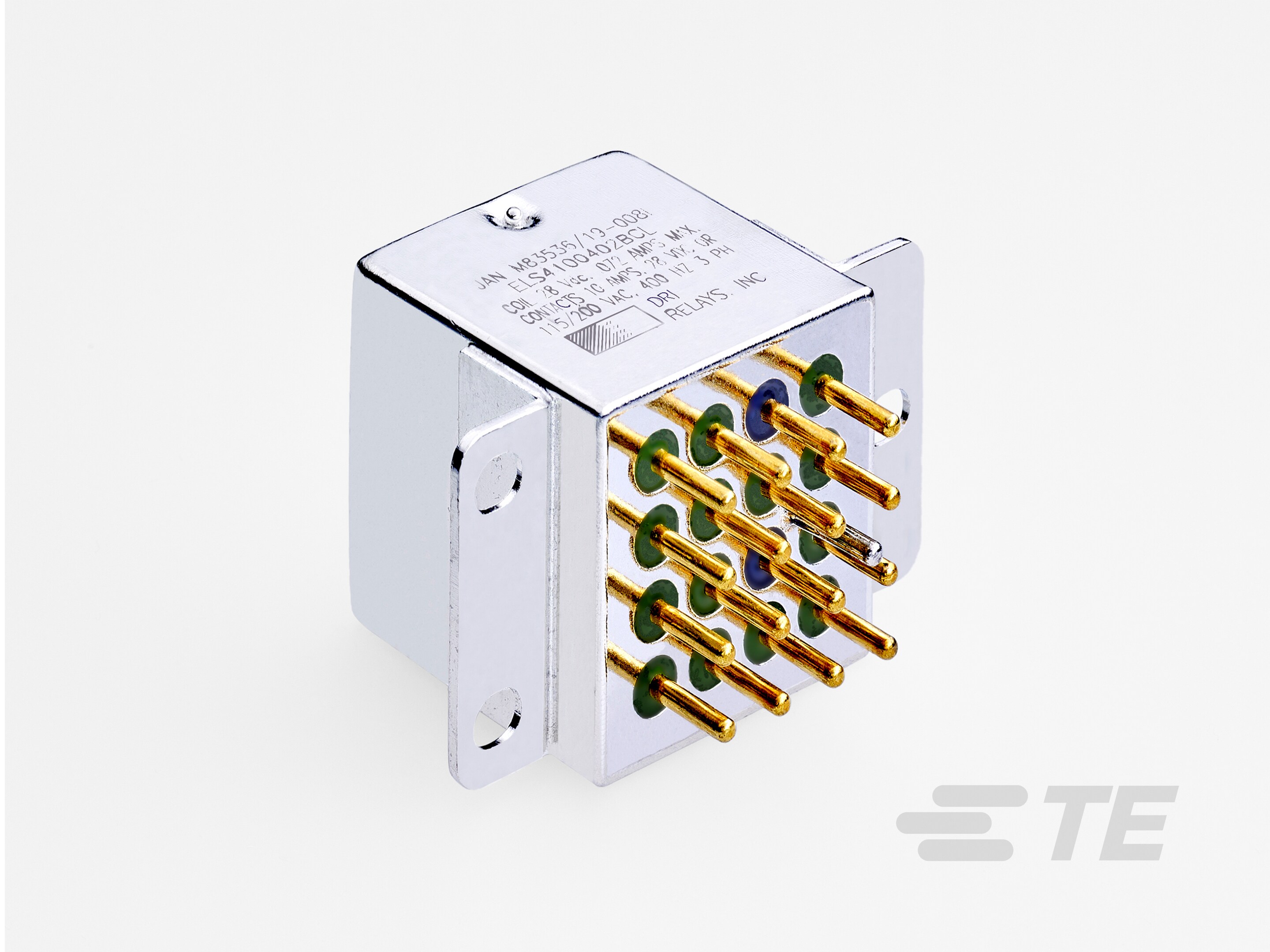

General Purpose Power Relay, DC, 4 Form C 4PDT-CO, 10 A Contact Rating, 28 VDC Coil Voltage, Hermetically Sealed, 125 °C [257 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | ELS410E2HD |
|---|---|
| Coil Current | 93.3 mA |
| Coil Type | Non Latching |
| Coil Voltage | 28 VDC |
| Contact Form | PDT, 4, Form, C |
| Contact Rating (Current) | 10 A |
| Load - Max Switching (Apparent Power) | 2000 VA |
| Load - Max Switching (Real Power) | 280 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18.7 VDC |
| Operate Time | 15 ms |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -70 °C |
| Pin Count | 4 |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Seal Rating | Sealed, Hermetically |
| Switching Voltage AC (Max) | 200 VAC |
| Switching Voltage DC (Max) | 28 VDC |
| Termination Style | Solder Hook |
