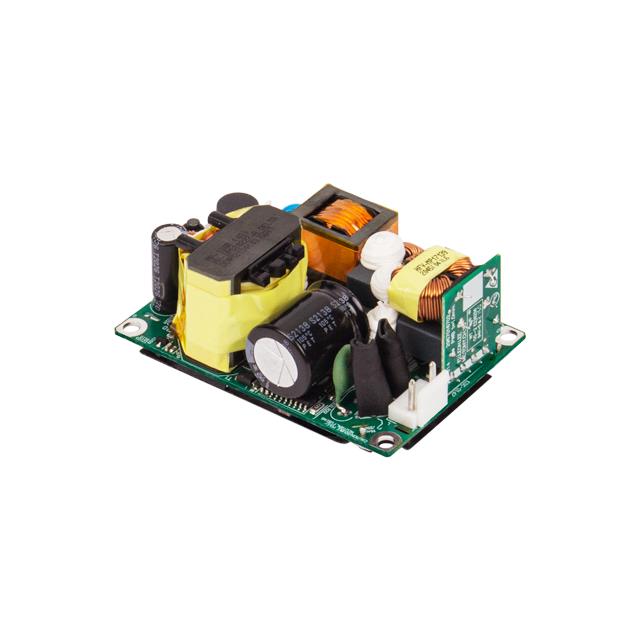

MEP-120A12J BNA
ActiveDelta Electronics
AC/DC CONVERTER 12V 114W
MEP-120A12J BNA
ActiveDelta Electronics
AC/DC CONVERTER 12V 114W
Description
General part information
MEP-120A12J BNA
Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MEP-120A12J BNA |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, UKCA, TUV, CE |
| Current - Output 1 | 9.5 A |
| Efficiency | 93.5 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 114 W |
| Size / Dimension Height | 1.2 in |
| Size / Dimension Length | 3 in |
| Size / Dimension Width | 2 in |
| Standard Number | 60950-1, 62368-1, 60601-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 12 V |
