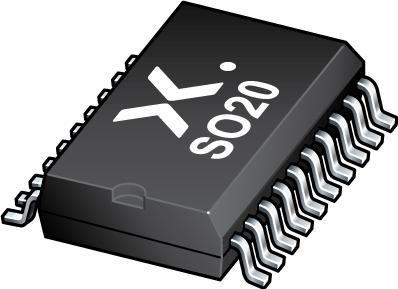

74LVT241D,112
ObsoleteNexperia USA Inc.
BUFFER/LINE DRIVER 8-CH NON-INVERTING 3-ST BICMOS 20-PIN SO BULK
74LVT241D,112
ObsoleteNexperia USA Inc.
BUFFER/LINE DRIVER 8-CH NON-INVERTING 3-ST BICMOS 20-PIN SO BULK
Description
General part information
74LVT241D,112
BUFFER/LINE DRIVER 8-CH NON-INVERTING 3-ST BICMOS 20-PIN SO BULK
Technical Specifications
Parameters and characteristics for this part
| Specification | 74LVT241D,112 |
|---|---|
| Current - Output High | 32 mA |
| Current - Output Low | 64 mA |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 4 bits |
| Number of Elements | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | 3-State |
| Package Length | 0.295 in |
| Package Name | 20-SO, 20-SOIC |
| Package Width | 7.5 mm |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
