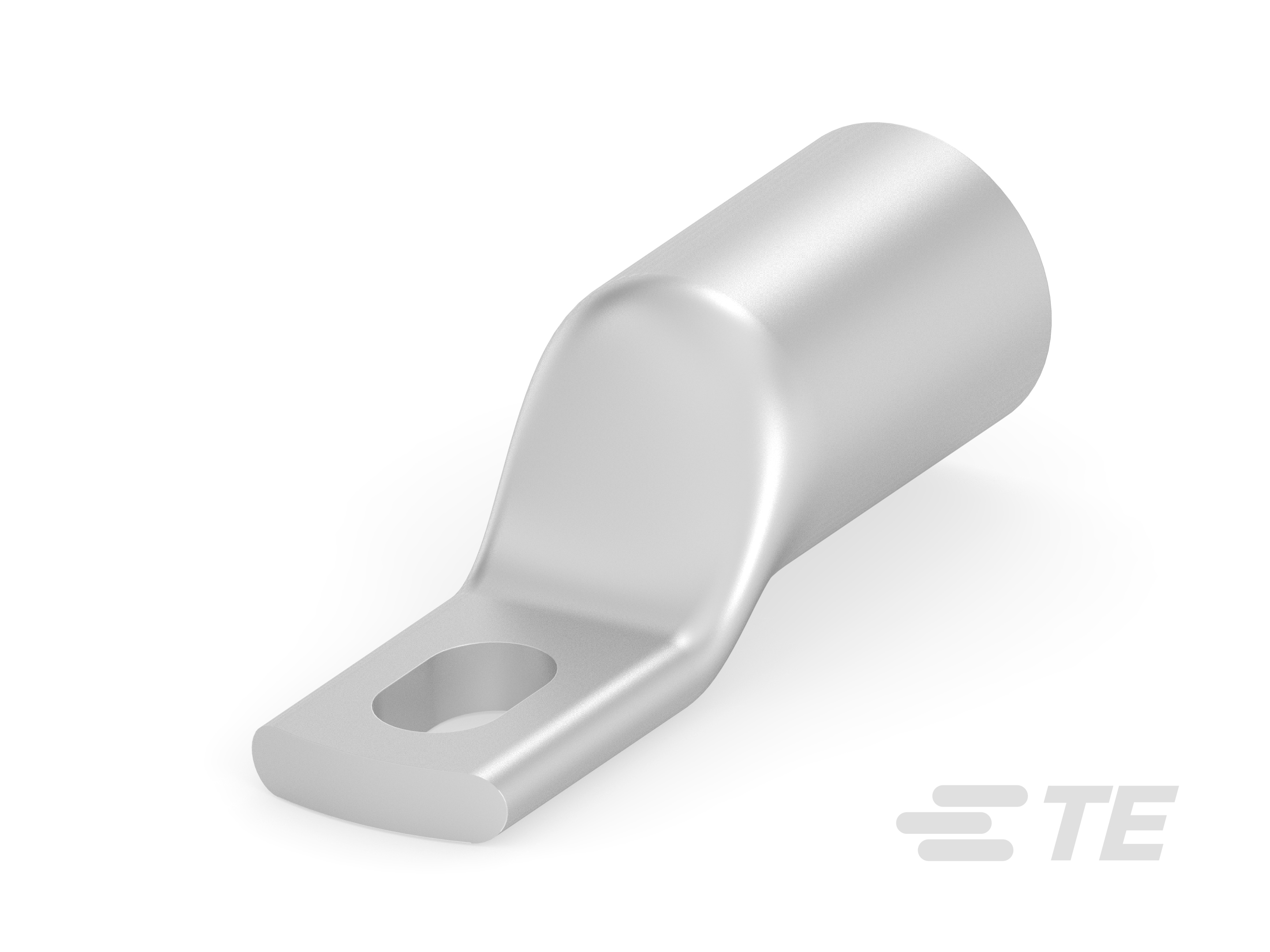

RING TONGUE TRMNL,IPT RING TONGUE 120MM2-2430382-1

2430382-1

Active
TE Connectivity AMP Connectors

RING TONGUE TRMNL,IPT RING TONGUE 120MM2

Find alt
RING TONGUE TRMNL,IPT RING TONGUE 120MM2-2430382-1

2430382-1

Active
TE Connectivity AMP Connectors

RING TONGUE TRMNL,IPT RING TONGUE 120MM2

Find alt

Description

General part information

IPT-HD Series

Terminates To Busbar, IPT-HD

Technical Specifications

Parameters and characteristics for this part

Specification2430382-1
InsulationNon-Insulated
Length - Overall2.559 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size0.375 in
Stud/Tab Size3 Stud, 8 Stud
Tab Thickness0.197 in
Terminal StyleSingle Stud Hole
Terminal TypeLug, Grounding
TerminationCrimp
Width - Outer Edges0.787 in
Wire Gauge (Cross-Sectional Area)120 mm²
