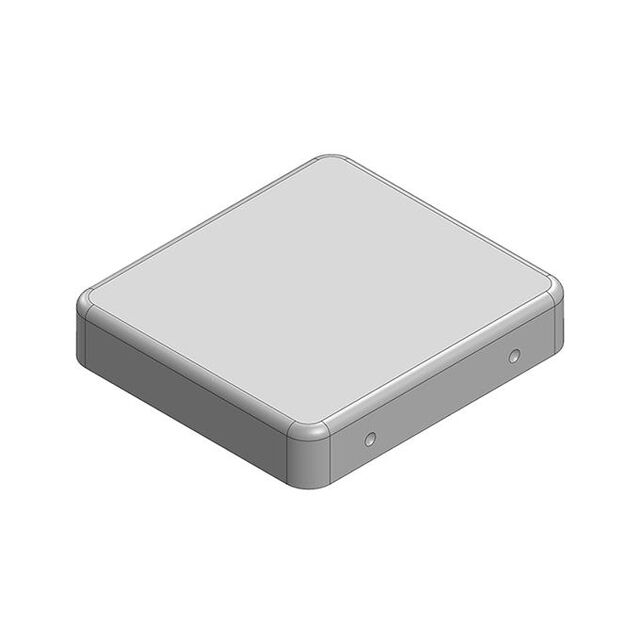

MS182-10C-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.669X0.732" SNAP FIT
Deep-Dive with AI
Search across all available documentation for this part.
MS182-10C-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.669X0.732" SNAP FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS182-10C-NS |
|---|---|
| Height - Overall [z] | 3.5 mm |
| Height - Overall [z] | 0.138 in |
| Length - Overall [x] | 0.732 in |
| Length - Overall [x] | 18.6 mm |
| Mounting Type | Snap Fit |
| Type | Cover |
| Ventilation | Non-Vented |
| Width - Overall [x] | 17 mm |
| Width - Overall [x] | 0.669 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.43 | |
| 10 | $ 1.56 | |||
| 25 | $ 1.34 | |||
| 99 | $ 1.08 | |||
| 297 | $ 0.93 | |||
| 495 | $ 0.88 | |||
| 990 | $ 0.81 | |||
| 2475 | $ 0.75 | |||
| 4950 | $ 0.71 | |||
Description
General part information
MS182 Series
RF Shield Cover 0.669" (17.00mm) X 0.732" (18.60mm) Non-Vented Snap Fit
