2.5 S.D.L P/HDR ASY 13P H/PRO.-917733-1

917733-1

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS 2.5 S.D.L P/HDR ASY 13P H/PRO.

Find alt
2.5 S.D.L P/HDR ASY 13P H/PRO.-917733-1

917733-1

Active
TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS 2.5 S.D.L P/HDR ASY 13P H/PRO.

Find alt

Description

General part information

917733-1

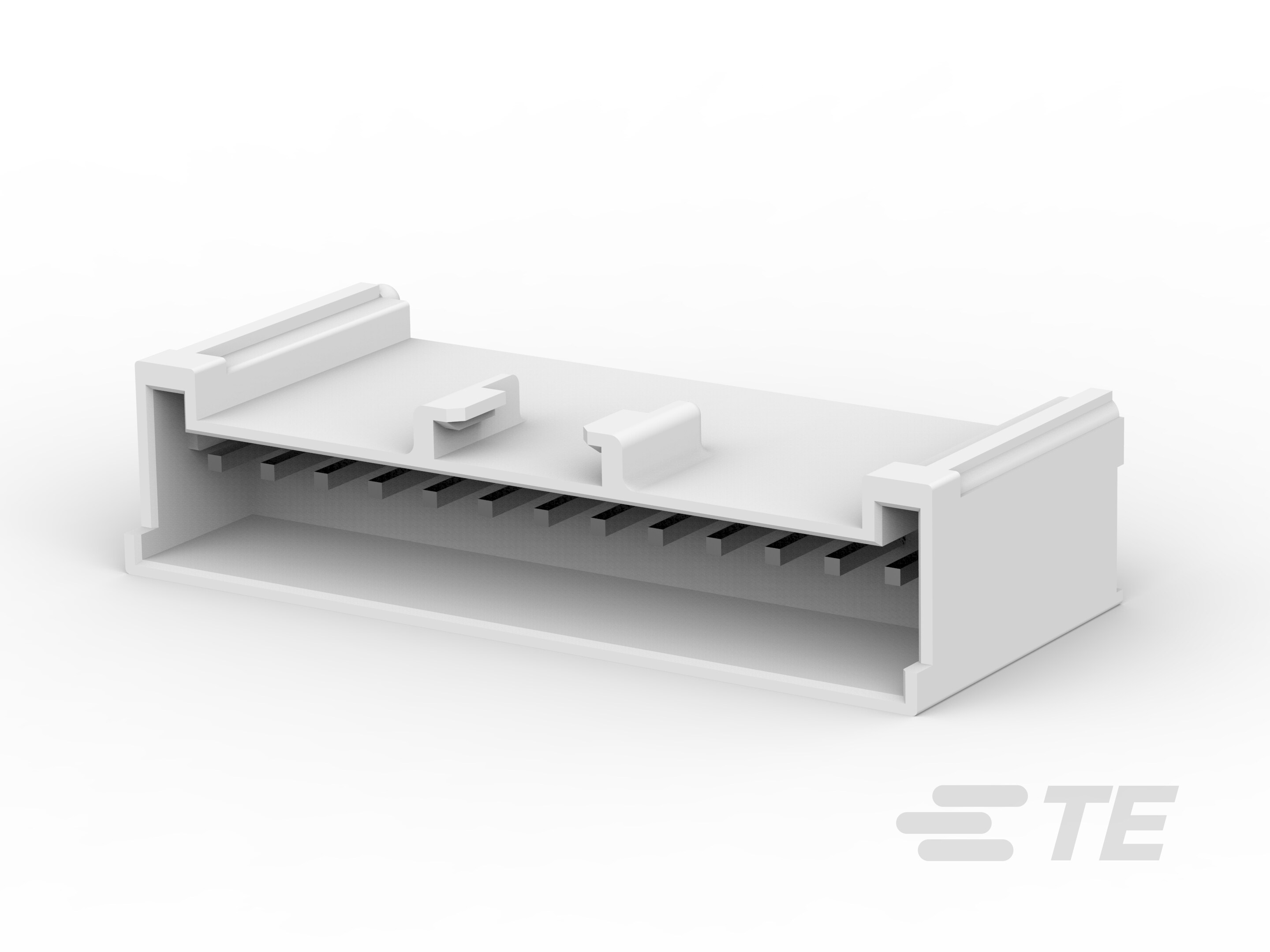

PCB Mount Header, Vertical, Wire-to-Board, 13 Position, 2.5 mm [.098 in] Centerline, Fully Shrouded, Tin (Sn), AMP Signal Double Lock

Technical Specifications

Parameters and characteristics for this part

Specification917733-1
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Length - Mating0.185 in
Contact Length - Post0.126 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3 A
Fastening TypeLatch Holder
FeaturesBoard Guide
Insulation ColorNatural
Insulation Height0.602 in
Insulation MaterialNylon 6/6, Polyamide (PA66), Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions13
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-30 °C
Overall Contact Length0.626 in
Pitch - Mating0.098 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationKinked Pin, Solder
Voltage Rating50 V
