Description
General part information

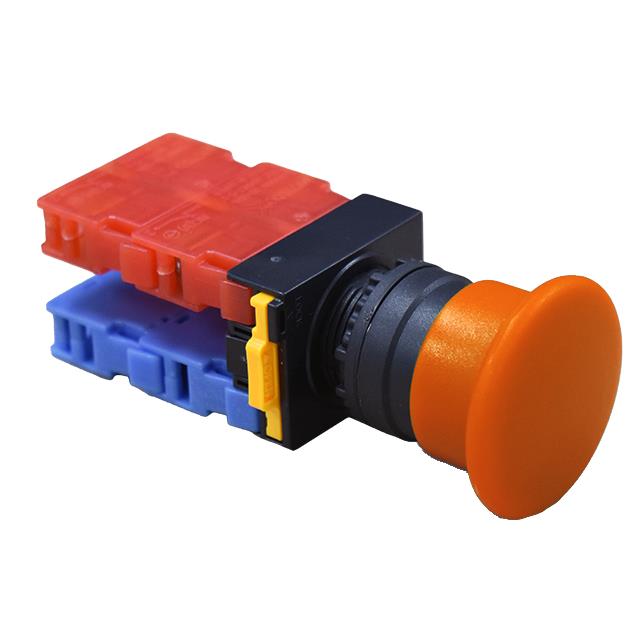

NS22-PEM-R2A02B
SWITCH E-STOP PULL RESET 6A 125V
Technical Specifications
Parameters and characteristics for this part
| Specification | NS22-PEM-R2A02B |
|---|---|
| Circuit | DPST-NC |
| Current Rating | 6 A, 270 mA |
| Illumination Voltage (Nominal) | 220 VDC |
| Ingress Protection | IP40 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.5 mm |
| Panel Cutout Shape | Circular |
| Reset Operation | Pull |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 250 VDC |
