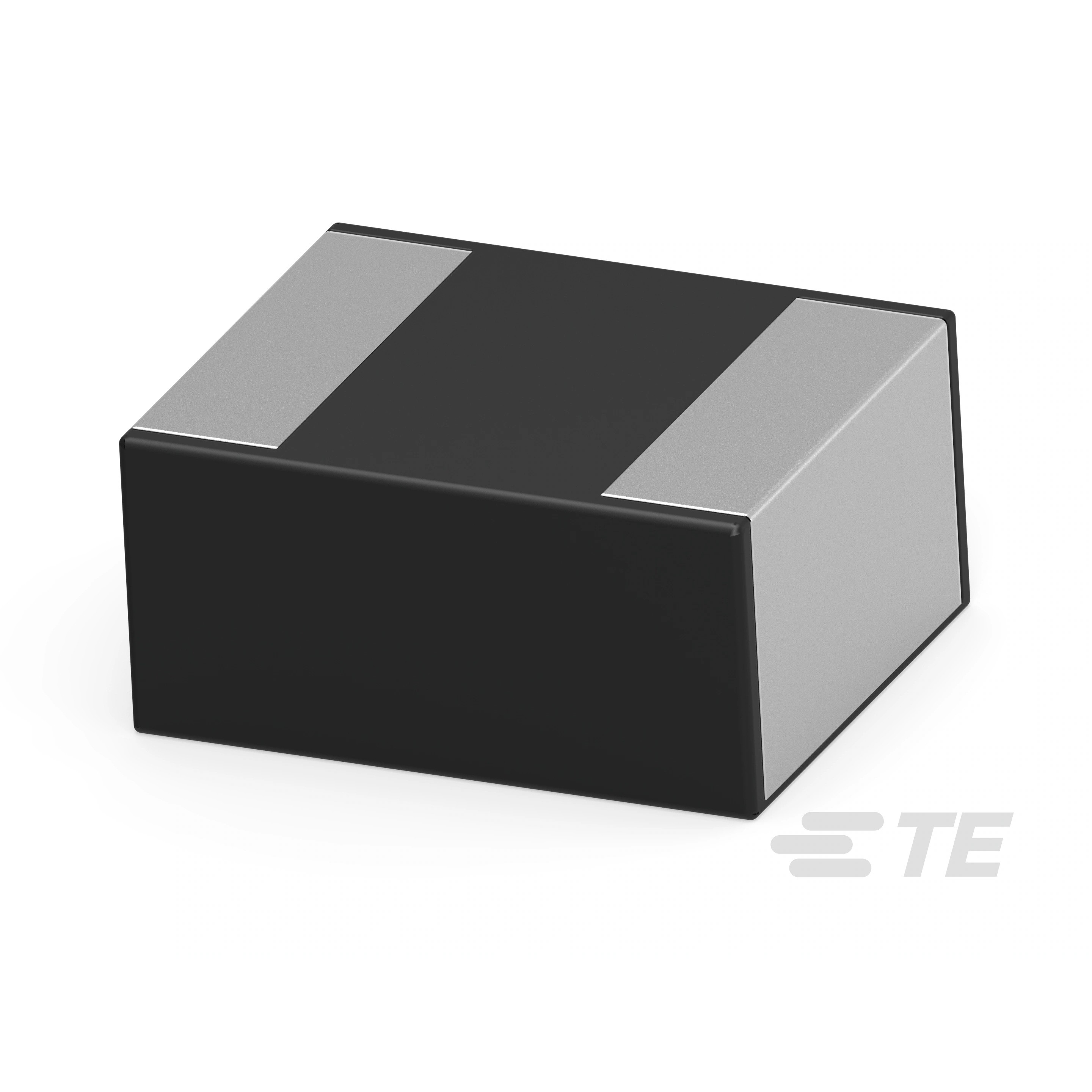

9-2176797-2
ActiveTE Connectivity AMP Connectors
3657HC 1008 1R5 20% T&R
9-2176797-2
ActiveTE Connectivity AMP Connectors
3657HC 1008 1R5 20% T&R
Description
General part information
9-2176797-2
3657HC 1008 1R5 20% T&R
Technical Specifications
Parameters and characteristics for this part
| Specification | 9-2176797-2 |
|---|---|
| Current - Saturation (Isat) | 4 A |
| Current Rating | 2.9 A |
| DC Resistance (DCR) (Max) | 63 mOhm |
| Frequency - Self Resonant | 60 MHz |
| Height - Seated (Max) | 0.047 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1008 (2520 Metric) |
| Package Name | 1005 |
| Shielding | Shielded |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Tolerance | 20 % |
| Type | Wirewound |
