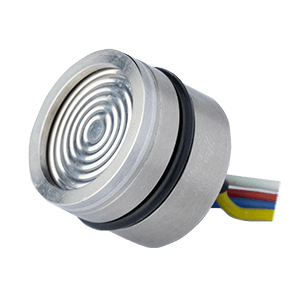

PS03-A400KP-V4W
ActiveSame Sky (Formerly CUI Devices)
INDUSTRIAL PRESSURE SENSOR 0.1V 0KPA TO 400KPA ABSOLUTE 4-PIN
PS03-A400KP-V4W
ActiveSame Sky (Formerly CUI Devices)
INDUSTRIAL PRESSURE SENSOR 0.1V 0KPA TO 400KPA ABSOLUTE 4-PIN
Description
General part information
PS03-A400KP-V4W
INDUSTRIAL PRESSURE SENSOR 0.1V 0KPA TO 400KPA ABSOLUTE 4-PIN
Technical Specifications
Parameters and characteristics for this part
| Specification | PS03-A400KP-V4W |
|---|---|
| Features | Temperature Compensated |
| Maximum Pressure | 116.03 PSI |
| Operating Pressure | 58.02 PSI |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Wheatstone Bridge |
| Output Voltage (Max) | 120 mV |
| Output Voltage (Min) | 80 mV |
| Package / Case | Module |
| Port Style | No Port |
| Pressure Type | Absolute |
| Termination Style | Wire Leads |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 10 VDC |
