Description
General part information

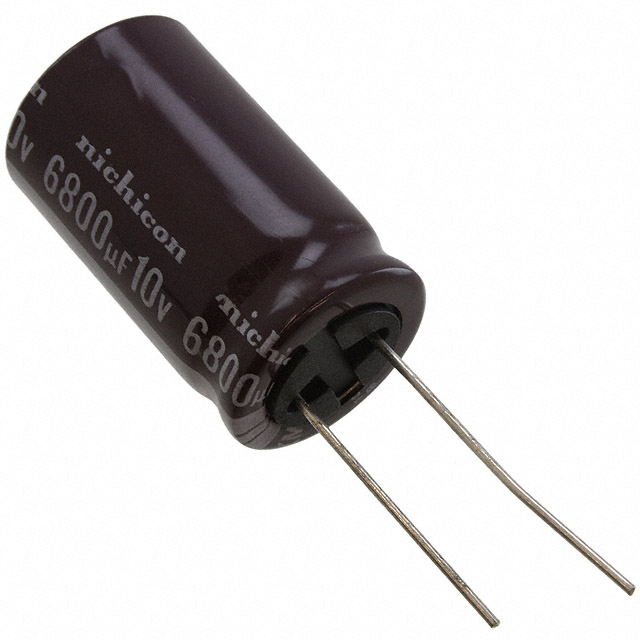

UPJ1A682MHD6
6800 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPJ1A682MHD6 |
|---|---|
| Applications | General Purpose |
| Capacitance | 6800 µF |
| Height - Seated (Max) | 1.299 in |
| Impedance | 27 mOhms |
| Lead Spacing | 0.295 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 2.54 A, 2.28 A |
| Size / Dimension Diameter | 0.709 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
