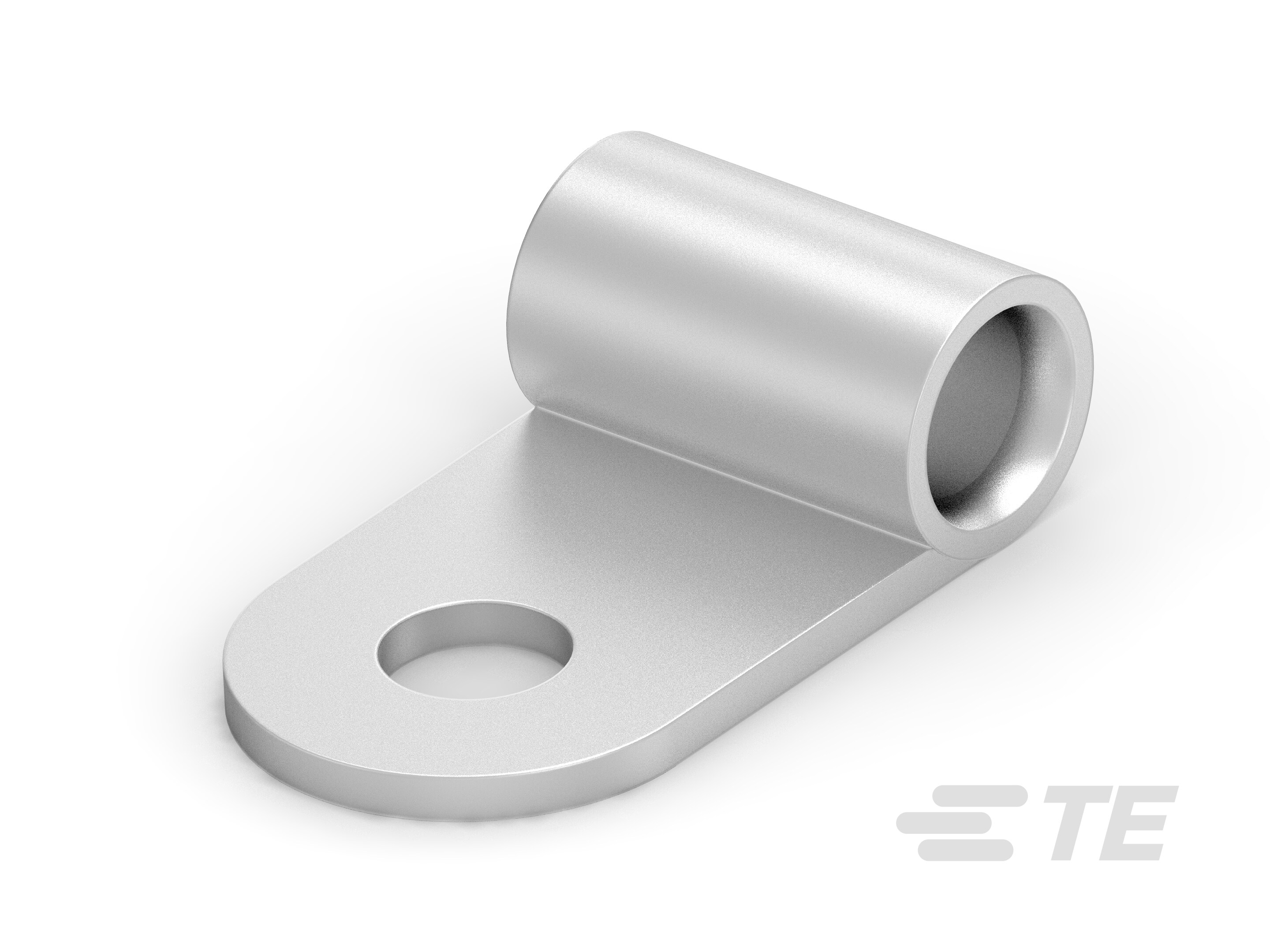

TERMINAL,SOLIS FLAG R 12-10 6-36269

36269

Active
TE Connectivity AMP Connectors

TERMINAL,SOLIS FLAG R 12-10 6 ROHS COMPLIANT: YES

Find alt
TERMINAL,SOLIS FLAG R 12-10 6-36269

36269

Active
TE Connectivity AMP Connectors

TERMINAL,SOLIS FLAG R 12-10 6 ROHS COMPLIANT: YES

Find alt

Description

General part information

36269

Closed Ring Tongue Terminal, 12 – 10 AWG, #6 / M3.5 Stud, 3.68 mm [.145 in] Stud Diameter, Closed Barrel, Flag, Tin Plating, Uninsulated

Technical Specifications

Parameters and characteristics for this part

Specification36269
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination, Brazed Seam
InsulationNon-Insulated
Length - Overall0.702 in
Mounting TypeRight Angle, Free Hanging (In-Line)
Stud/Tab Size6 Stud
Terminal TypeCircular
TerminationFlag, Crimb
Thickness0.039 in
Width - Outer Edges0.375 in
Wire Gauge (AWG) (Max)12 AWG
Wire Gauge (AWG) (Min)10 AWG
