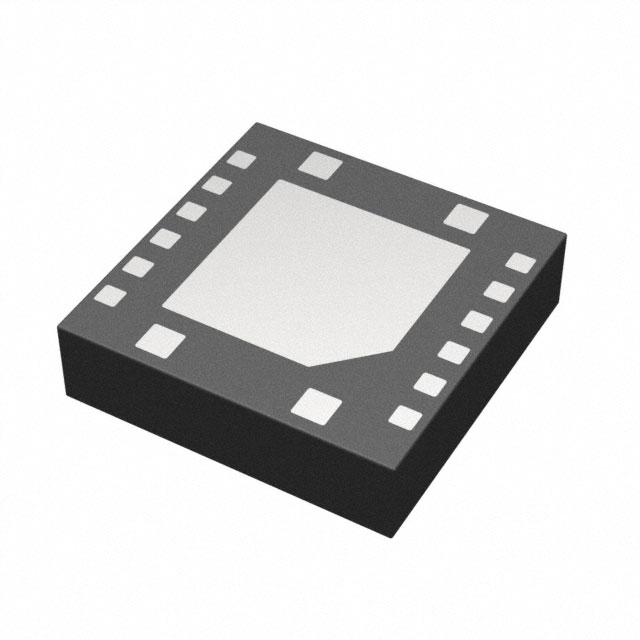

MAXM17632AME+
ActiveAnalog Devices Inc./Maxim Integrated
DC DC CONVERTER 0.9-12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM17632AME+
ActiveAnalog Devices Inc./Maxim Integrated
DC DC CONVERTER 0.9-12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17632AME+ | MAXM17632 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Board Type | - | Fully Populated |
| Current - Output | - | 1 A |
| Current - Output (Max) [Max] | 1 A | 1 A |
| Features | Adjustable Output | Adjustable Output |
| Frequency - Switching | - | 2.15 MHz |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 1 |
| Package / Case | 16-SMD Module | 16-SMD Module |
| Regulator Topology | - | Buck |
| Size / Dimension [x] | 3 mm | 3 mm |
| Size / Dimension [x] | 0.12 in | 0.12 in |
| Size / Dimension [y] | 3 mm | 3 mm |
| Size / Dimension [y] | 0.12 " | 0.12 " |
| Size / Dimension [z] | 1.7 mm | 1.7 mm |
| Size / Dimension [z] | 0.06 " | 0.06 " |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 16-eMGA (3x3) | 16-eMGA (3x3) |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Utilized IC / Part | - | MAXM17632 |
| Voltage - Input | - | 36 V |
| Voltage - Input | - | 20 VDC |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output | - | 12 V |
| Voltage - Output 1 [Max] | 12 V | 12 V |
| Voltage - Output 1 [Min] | 0.9 V | 0.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 8.79 | |
| 10 | $ 6.06 | |||
| 25 | $ 5.36 | |||
| 100 | $ 4.57 | |||
| 250 | $ 4.19 | |||
| 500 | $ 3.95 | |||
| 1000 | $ 3.76 | |||
| 2500 | $ 3.64 | |||
MAXM17632 Series
EVAL BOARD FOR MAXM17632
| Part | Frequency - Switching | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents | Main Purpose | Voltage - Output | Current - Output | Outputs and Type | Outputs and Type | Regulator Topology | Board Type | Utilized IC / Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Supplier Device Package | Type | Voltage - Input (Max) [Max] | Package / Case | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Mounting Type | Number of Outputs | Applications | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17632EVKIT# | 2.15 MHz | 36 V | 20 VDC | Board(s) | DC/DC, Step Down | 12 V | 1 A | Non-Isolated | 1 | Buck | Fully Populated | MAXM17632 | ||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17632AME+T | 3 mm | 1.7 mm | 3 mm | 0.12 in | 0.06 " | 0.12 " | 16-eMGA (3x3) | Non-Isolated PoL Module | 36 V | 16-SMD Module | 1 A | 125 °C | -40 °C | 4.5 V | 0.9 V | 12 V | Surface Mount | 1 | ITE (Commercial) | |||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17632AME+ | 3 mm | 1.7 mm | 3 mm | 0.12 in | 0.06 " | 0.12 " | 16-eMGA (3x3) | Non-Isolated PoL Module | 36 V | 16-SMD Module | 1 A | 125 °C | -40 °C | 4.5 V | 0.9 V | 12 V | Surface Mount | 1 | ITE (Commercial) | Adjustable Output |
Description
General part information
MAXM17632 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 12V 1A 4.5V - 36V Input
