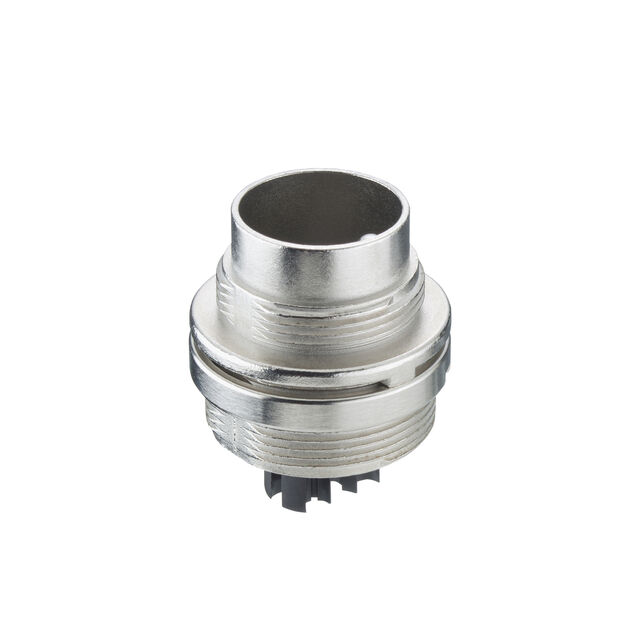

SFV 30 C
ActiveLumberg Inc
IP40 CHASSIS PLUG CRIMP FRONT
SFV 30 C
ActiveLumberg Inc
IP40 CHASSIS PLUG CRIMP FRONT
Description
General part information
SFV 30 C
3 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | SFV 30 C |
|---|---|
| Color | Silver |
| Connector Type | Plug Housing, Female Sockets, Plug |
| Contact Type | Crimp |
| Current Rating | 5 A |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0, UL94 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Chassis Mount |
| Number of Positions | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M16 |
| Termination | Crimp |
| Type | For Female Sockets |
