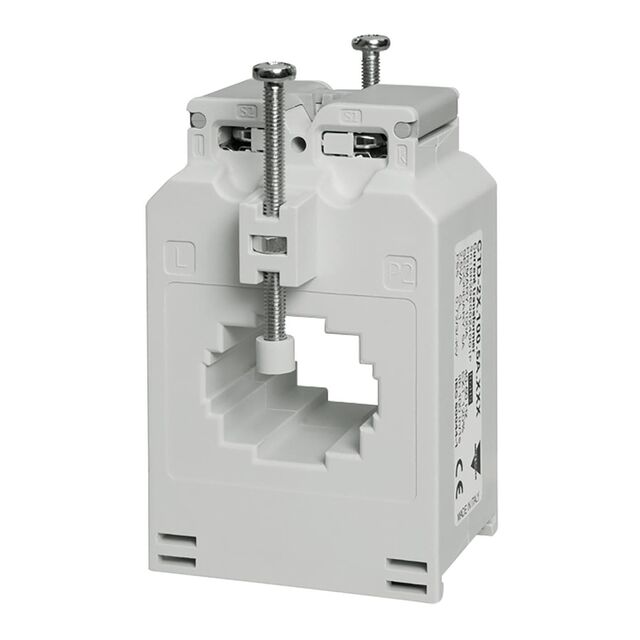

CTD2X1505AXXX
ObsoleteCarlo Gavazzi Inc.
CURRENT TRANSFORMER REV.17
CTD2X1505AXXX
ObsoleteCarlo Gavazzi Inc.
CURRENT TRANSFORMER REV.17
Description
General part information
CTD2X1505AXXX
150 A Current Sense Transformer 45Hz ~ 65Hz DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | CTD2X1505AXXX |
|---|---|
| Current Rating | 150 A |
| Frequency Range (Max) | 65 Hz |
| Frequency Range (Min) | 45 Hz |
| Height - Seated (Max) | 3.386 in |
| Mounting Type | DIN Rail |
| Size / Dimension Length | 2.48 in |
| Size / Dimension Width | 2.205 in |
| Termination Style | Terminal Block |
| Type | Non-Invasive (Solid Core) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
