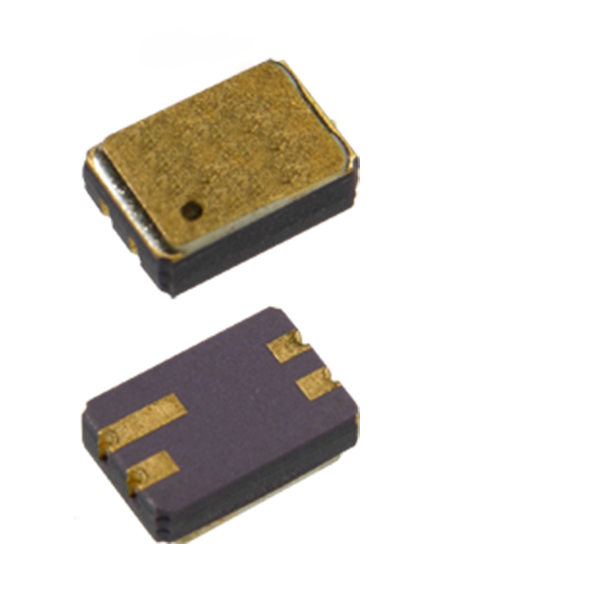

HCC242TX
ActiveTT Electronics/BI
OPTOISOLTR 1KV 1CH TRANS 4-CLCC
HCC242TX
ActiveTT Electronics/BI
OPTOISOLTR 1KV 1CH TRANS 4-CLCC
Description
General part information
HCC242TX
OPTOISOLTR 1KV 1CH TRANS 4-CLCC
Technical Specifications
Parameters and characteristics for this part
| Specification | HCC242TX |
|---|---|
| Current - DC Forward (If) (Max) | 40 mA |
| Current - Output / Channel | 50 mA |
| Current Transfer Ratio (Min) | 100 % |
| Fall Time (Typ) | 20 µs |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Output Type | Transistor |
| Package / Case | 4-SMD, No Lead |
| Package Length | 5.59 mm |
| Package Name | 4-CLCC |
| Package Width | 3.81 mm |
| Rise Time (Typ) | 20 µs |
| Vce Saturation (Max) | 300 mV |
| Voltage - Forward (Vf) (Max) | 1.5 V |
| Voltage - Isolation | 1000 Vrms |
| Voltage - Output (Max) | 30 V |
