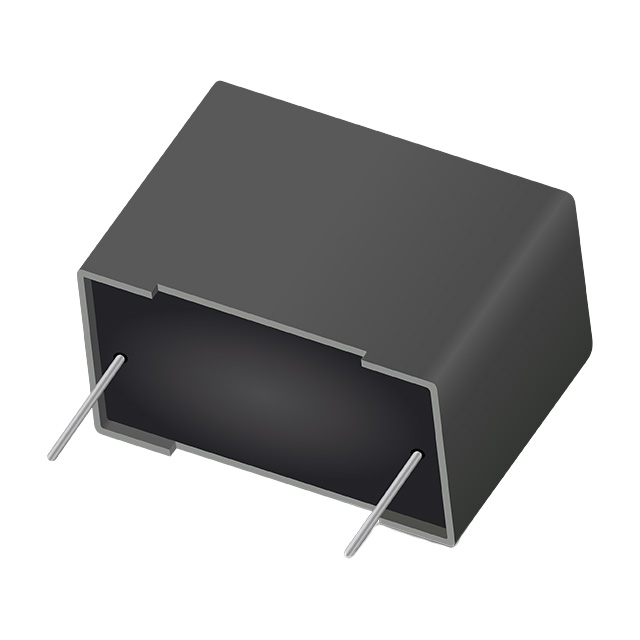

Specification	FB27EC8Q0205KC

Applications	DC Filtering, DC Link
Capacitance	2 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	28.1 mOhm
Features	Low ESR
Height - Seated (Max)	0.74 in
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Size / Dimension Length	1.26 in
Size / Dimension Width	0.354 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - DC	600 V
