RLRK121LC02B
ActivePasternack
LC IP68 RCPT JAM NUT SM DCAP
RLRK121LC02B
ActivePasternack
LC IP68 RCPT JAM NUT SM DCAP
Description
General part information
RLRK121LC02B

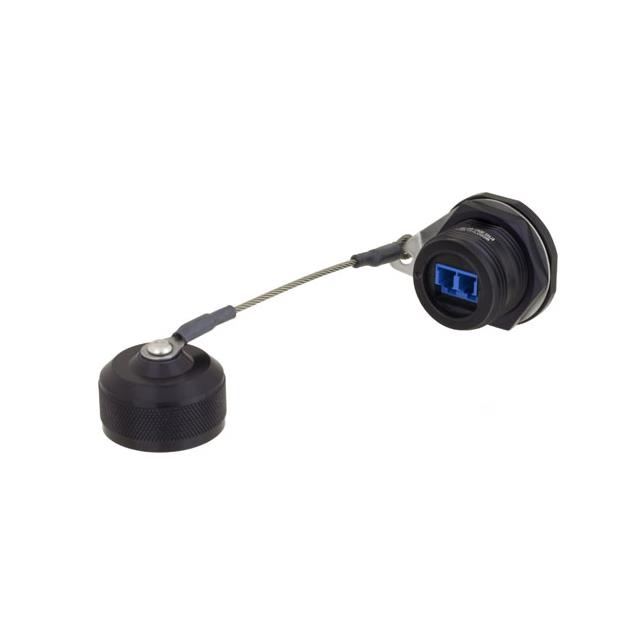

Fiber Optic Receptacle Connector LC Duplex Blue
Technical Specifications
Parameters and characteristics for this part
| Specification | RLRK121LC02B |
|---|---|
| Attenuation (Typical) | -0.5 db |
| Body Material | Aluminum |
| Connector Style | LC |
| Connector Type | Receptacle |
| Fastening Type | Threaded |
| Features | Dust Cap |
| Housing Color | Blue |
| Housing Material | Thermoplastic |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Mating Cycles | 500 cycles |
| Mode | Singlemode |
| Mounting Type | Bulkhead, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Simplex/Duplex | Duplex |
