Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M27C1001-12F6 | M27C1001 Series |
|---|---|---|
| Access Time | 120 ns | 45 - 150 ns |
| Memory Format | EPROM | EPROM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 128K x 8 | 128K x 8 |
| Memory Size | 1 Mbit | 1 Mbit |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Package / Case | 0.6 in | 0.6 - 600 mil |
| Package / Case | Window, 32-CDIP | 32-LCC (J-Lead), 32-DIP, Window, 32-CDIP |
| Package / Case | 15.24 mm | 15.24 mm |
| Supplier Device Package | 32-CDIP Frit Seal with Window | 32-PLCC (11.35x13.89), 32-PDIP, 32-CDIP Frit Seal with Window |
| Technology | EPROM - UV | EPROM - OTP, EPROM - UV |
| Voltage - Supply [Max] | 5.5 V | 5.25 - 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 - 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
M27C1001 Series
IC EPROM 1MBIT PARALLEL 32PLCC
| Part | Supplier Device Package | Memory Organization | Memory Interface | Operating Temperature [Max] | Operating Temperature [Min] | Access Time | Mounting Type | Memory Type | Package / Case | Memory Format | Memory Size | Technology | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics M27C1001-15C1 | 32-PLCC (11.35x13.89) | 128K x 8 | Parallel | 70 °C | 0 °C | 150 ns | Surface Mount | Non-Volatile | 32-LCC (J-Lead) | EPROM | 1 Mbit | EPROM - OTP | 5.5 V | 4.5 V | ||
STMicroelectronics M27C1001-70C6 | 32-PLCC (11.35x13.89) | 128K x 8 | Parallel | 85 °C | -40 °C | 70 ns | Surface Mount | Non-Volatile | 32-LCC (J-Lead) | EPROM | 1 Mbit | EPROM - OTP | 5.5 V | 4.5 V | ||
STMicroelectronics M27C1001-70C1 | 32-PLCC (11.35x13.89) | 128K x 8 | Parallel | 70 °C | 0 °C | 70 ns | Surface Mount | Non-Volatile | 32-LCC (J-Lead) | EPROM | 1 Mbit | EPROM - OTP | 5.5 V | 4.5 V | ||
STMicroelectronics M27C1001-12B1 | 32-PDIP | 128K x 8 | Parallel | 70 °C | 0 °C | 120 ns | Through Hole | Non-Volatile | 32-DIP | EPROM | 1 Mbit | EPROM - OTP | 5.5 V | 4.5 V | 0.6 in, 600 mil | |
STMicroelectronics M27C1001-12F6 | 32-CDIP Frit Seal with Window | 128K x 8 | Parallel | 85 °C | -40 °C | 120 ns | Through Hole | Non-Volatile | 32-CDIP, Window | EPROM | 1 Mbit | EPROM - UV | 5.5 V | 4.5 V | 0.6 in | 15.24 mm |
STMicroelectronics M27C1001-45XC1 | 32-PLCC (11.35x13.89) | 128K x 8 | Parallel | 70 °C | 0 °C | 45 ns | Surface Mount | Non-Volatile | 32-LCC (J-Lead) | EPROM | 1 Mbit | EPROM - OTP | 5.25 V | 4.75 V | ||
STMicroelectronics M27C1001-12F1 | 32-CDIP Frit Seal with Window | 128K x 8 | Parallel | 70 °C | 0 °C | 120 ns | Through Hole | Non-Volatile | 32-CDIP, Window | EPROM | 1 Mbit | EPROM - UV | 5.5 V | 4.5 V | 0.6 in | 15.24 mm |
STMicroelectronics M27C1001-90C1 | 32-PLCC (11.35x13.89) | 128K x 8 | Parallel | 70 °C | 0 °C | 90 ns | Surface Mount | Non-Volatile | 32-LCC (J-Lead) | EPROM | 1 Mbit | EPROM - OTP | 5.5 V | 4.5 V | ||
STMicroelectronics M27C1001-15B1 | 32-PDIP | 128K x 8 | Parallel | 70 °C | 0 °C | 150 ns | Through Hole | Non-Volatile | 32-DIP | EPROM | 1 Mbit | EPROM - OTP | 5.5 V | 4.5 V | 0.6 in, 600 mil | |
STMicroelectronics M27C1001-10C1 | 32-PLCC (11.35x13.89) | 128K x 8 | Parallel | 70 °C | 0 °C | 100 ns | Surface Mount | Non-Volatile | 32-LCC (J-Lead) | EPROM | 1 Mbit | EPROM - OTP | 5.5 V | 4.5 V | ||
STMicroelectronics M27C1001-70B1 | 32-PDIP | 128K x 8 | Parallel | 70 °C | 0 °C | 70 ns | Through Hole | Non-Volatile | 32-DIP | EPROM | 1 Mbit | EPROM - OTP | 5.5 V | 4.5 V | 0.6 in, 600 mil |
Description
General part information
M27C1001 Series

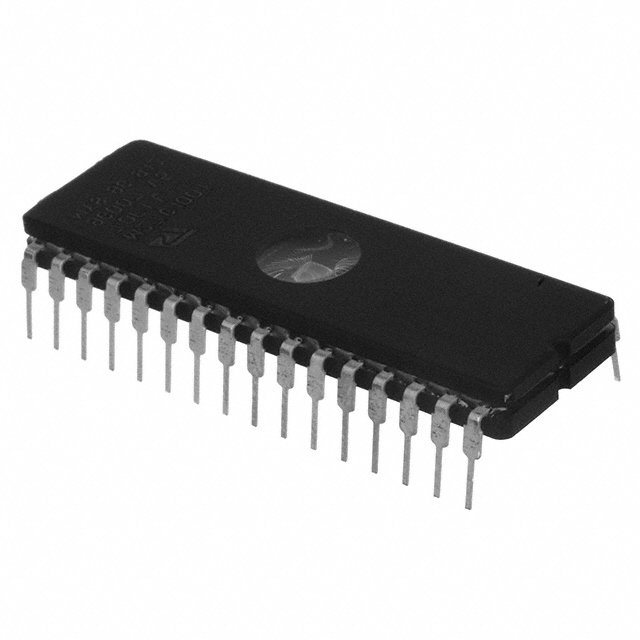

EPROM - UV Memory IC 1Mbit Parallel 120 ns 32-CDIP Frit Seal with Window
