FFSD-13-D-60.00-01-N-D09

Active

Samtec Inc.

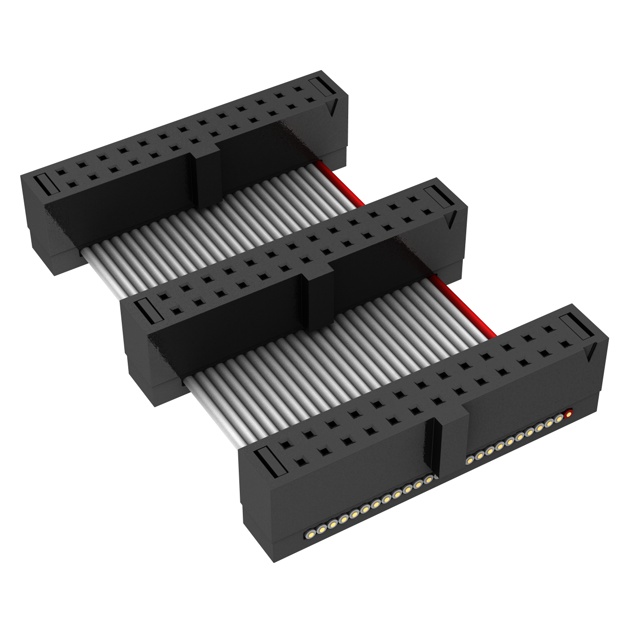

CABLE ASSEMBLY 1.524M 30AWG 1.27MM 26 TO (26/26) POS IDC CONNECTOR TO 2(IDC CONNECTOR) F-F TIGER EYE™ BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-13-D-60.00-01-N-D09

Active

Samtec Inc.

CABLE ASSEMBLY 1.524M 30AWG 1.27MM 26 TO (26/26) POS IDC CONNECTOR TO 2(IDC CONNECTOR) F-F TIGER EYE™ BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-13-D-60.00-01-N-D09

Cable Termination	IDC
Connector Type	Socket to Socket (3)
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Reverse Wiring
Length	1.52 m
Length	5 '
Number of Positions	26
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-13 Series

Ribbon Cables / IDC Cables .050" Low Profile Tiger Eye IDC Ribbon Cable Assembly

...

Part	Cable Termination	Pitch - Connector	Pitch - Connector	Number of Positions	Features	Contact Finish	Pitch - Cable [x]	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Length [x]	Length [x]	Connector Type	Length	Length	Length	Length [x]
Samtec Inc. FFSD-13-D-17.00-01-N-R	IDC	0.05 in	1.27 mm	26	Polarizing Key Reverse Wiring	Gold	0.025 in	0.64 mm	Unshielded	10 Áin	0.25 Ám	2	432 mm	1.42 ft	Socket to Socket Reversed
Samtec Inc. FFSD-13-D-02.36-01-N	IDC	0.05 in	1.27 mm	26	Polarizing Key	Gold	0.025 in	0.64 mm	Unshielded	10 Áin	0.25 Ám	2			Socket to Socket	0.197 ft	2.36 in	59.94 mm
Samtec Inc. FFSD-13-D-11.80-01-N	IDC	0.05 in	1.27 mm	26	Polarizing Key	Gold	0.025 in	0.64 mm	Unshielded	10 Áin	0.25 Ám	2			Socket to Socket	0.983 ft	11.8 in	299.72 mm
Samtec Inc. FFSD-13-D-03.80-01-N	IDC	0.05 in	1.27 mm	26	Polarizing Key	Gold	0.025 in	0.64 mm	Unshielded	10 Áin	0.25 Ám	2			Socket to Socket	0.317 ft	3.8 "	96.52 mm
Samtec Inc. FFSD-13-D-28.00-01-N-SR	IDC	0.05 in	1.27 mm	26	Polarizing Key Strain Relief	Gold	0.025 in	0.64 mm	Unshielded	10 Áin	0.25 Ám	2			Socket to Socket	2.33 '		711.2 mm
Samtec Inc. FFSD-13-D-07.09-01-N	IDC	0.05 in	1.27 mm	26	Polarizing Key	Gold	0.025 in	0.64 mm	Unshielded	10 Áin	0.25 Ám	2			Socket to Socket	0.591 ft	7.09 in	180.09 mm
Samtec Inc. FFSD-13-S-04.00-01-N	IDC	0.05 in	1.27 mm	26	Polarizing Key	Gold	0.025 in	0.64 mm	Unshielded	10 Áin	0.25 Ám	2	101.6 mm	0.333 ft	Socket to Cable				4 "
Samtec Inc. FFSD-13-D-15.75-01-N	IDC	0.05 in	1.27 mm	26	Polarizing Key	Gold	0.025 in	0.64 mm	Unshielded	10 Áin	0.25 Ám	2	400.05 mm	1.31 ft	Socket to Socket
Samtec Inc. FFSD-13-D-88.55-01-N	IDC	0.05 in	1.27 mm	26	Polarizing Key	Gold	0.025 in	0.64 mm	Unshielded	10 Áin	0.25 Ám	2		7.38 ft	Socket to Socket			2.25 m
Samtec Inc. FFSD-13-D-60.00-01-N-D09	IDC	0.05 in	1.27 mm	26	Polarizing Key Reverse Wiring	Gold	0.025 in	0.64 mm	Unshielded	10 Áin	0.25 Ám	2			Socket to Socket (3)	5 '		1.52 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.42

Description

General part information

FFSD-13 Series

Ribbon Cables / IDC Cables .050" Low Profile Tiger Eye IDC Ribbon Cable Assembly
