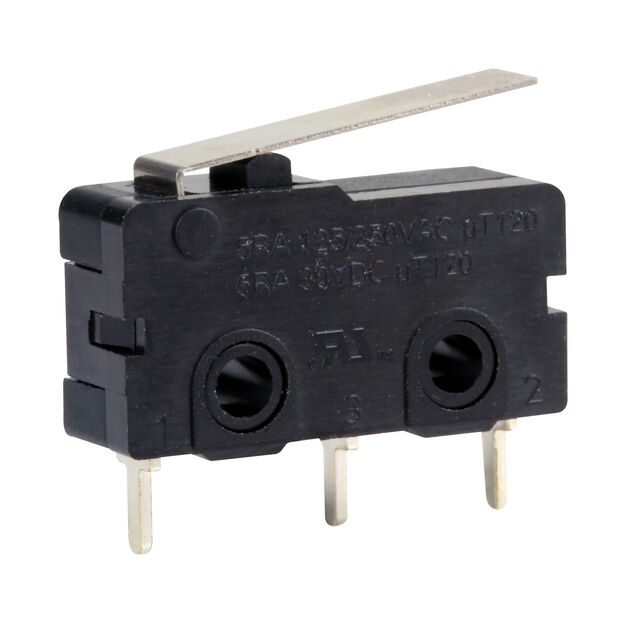

ZM50E20B01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Basic, Toggle, Rocker Switches Range Guide

ZM50E20B01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet Basic, Toggle, Rocker Switches Range Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.50

Description

General part information

ZM50E Series

Switch SPDT Through Hole

Documents

Technical documentation and resources

Datasheet

Basic, Toggle, Rocker Switches Range Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZM50E20B01	ZM50E Series

Actuator Type	Lever, Straight	Simulated Roller, Lever, Roller, Round (Pin Plunger), Lever, Straight
Circuit	SPDT	SPDT, SPST-NO
Current Rating (Amps)	5 A	5 A
Differential Travel	0.81 mm	0.2 - 2.9 mm
Differential Travel	0.032 in	0.008 - 0.114 in
Electrical Life	6000 Cycles	6000 Cycles
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle, Chassis Mount
Operating Force	35 gf	35 - 146 gf
Operating Position	11.8 mm	11.4 - 17.5 mm
Operating Position	0.465 in	0.449 - 0.689 "
Operating Position	-	0.35 in
Operating Position	-	8.9 mm
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.6 mm	0.4 - 1 mm
Overtravel	0.025 "	0.015 - 0.039 "
Pretravel	3.6 mm	1.1 - 13.3 mm
Pretravel	0.14 in	0.043 - 0.524 in
Release Force	10 gf	2.5 - 35 gf
Switch Function	On-Mom	On-Mom, Off-Mom
Termination Style	PC Pin	PC Pin, Quick Connect - 0.110" (2.8mm), Solder Lug
Voltage Rating - AC	125 V	125 V

ZM50E Series

SWITCH SNAP ACTION SPDT 5A 125V

Part	Termination Style	Circuit	Current Rating (Amps)	Operating Force	Operating Position	Operating Position	Actuator Type	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Electrical Life	Voltage Rating - AC	Pretravel	Pretravel	Release Force	Mechanical Life	Overtravel	Overtravel	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions ZM50E20E01	PC Pin	SPDT	5 A	35 gf	15.1 mm	0.594 "	Lever, Simulated Roller	On-Mom	-40 °C	120 °C	Through Hole	6000 Cycles	125 V	0.205 in	5.2 mm	8 gf	10000000 Cycles	0.6 mm	0.025 "
Honeywell Sensing and Productivity Solutions ZM50E50F01	PC Pin	SPDT	5 A	35 gf	17.5 mm	0.689 in	Lever, Roller	On-Mom	-40 °C	120 °C	Through Hole, Right Angle	6000 Cycles	125 V	0.15 in	3.8 mm	8 gf	10000000 Cycles	0.76 mm	0.03 in	0.03 in	0.76 mm
Honeywell Sensing and Productivity Solutions ZM50E70A01	Quick Connect - 0.110" (2.8mm)	SPDT	5 A	146 gf	11.4 mm	0.449 in	Round (Pin Plunger)	On-Mom	-40 °C	120 °C	Chassis Mount	6000 Cycles	125 V	0.043 "	1.1 mm	35 gf	10000000 Cycles	0.4 mm	0.015 "	0.008 in	0.2 mm
Honeywell Sensing and Productivity Solutions ZM50E60B01	PC Pin	SPDT	5 A	35 gf	11.8 mm	0.465 in	Lever, Straight	On-Mom	-40 °C	120 °C	Through Hole, Right Angle	6000 Cycles	125 V	0.14 in	3.6 mm	10 gf	10000000 Cycles	0.6 mm	0.025 "	0.032 in	0.81 mm
Honeywell Sensing and Productivity Solutions ZM50E20B01	PC Pin	SPDT	5 A	35 gf	11.8 mm	0.465 in	Lever, Straight	On-Mom	-40 °C	120 °C	Through Hole	6000 Cycles	125 V	0.14 in	3.6 mm	10 gf	10000000 Cycles	0.6 mm	0.025 "	0.032 in	0.81 mm
Honeywell Sensing and Productivity Solutions ZM50E10E01	Solder Lug	SPDT	5 A	35 gf	15.1 mm	0.594 "	Lever, Simulated Roller	On-Mom	-40 °C	120 °C	Chassis Mount	6000 Cycles	125 V	0.205 in	5.2 mm	8 gf	10000000 Cycles	0.6 mm	0.025 "
Honeywell Sensing and Productivity Solutions ZM50E70J01	Quick Connect - 0.110" (2.8mm)	SPDT	5 A		11.8 mm	0.465 in	Lever, Straight	On-Mom	-40 °C	120 °C	Chassis Mount	6000 Cycles	125 V	0.524 in	13.3 mm	2.5 gf	10000000 Cycles	1 mm	0.039 in	0.114 in	2.9 mm
Honeywell Sensing and Productivity Solutions ZM50E70F01	Quick Connect - 0.110" (2.8mm)	SPDT	5 A	35 gf	17.5 mm	0.689 in	Lever, Roller	On-Mom	-40 °C	120 °C	Chassis Mount	6000 Cycles	125 V	0.15 in	3.8 mm	8 gf	10000000 Cycles	0.76 mm	0.03 in	0.03 in	0.76 mm
Honeywell Sensing and Productivity Solutions ZM50E10F01	Solder Lug	SPDT	5 A	35 gf	17.5 mm	0.689 in	Lever, Roller	On-Mom	-40 °C	120 °C	Chassis Mount	6000 Cycles	125 V	0.15 in	3.8 mm	8 gf	10000000 Cycles	0.76 mm	0.03 in	0.03 in	0.76 mm
Honeywell Sensing and Productivity Solutions ZM50E20A03	PC Pin	SPST-NO	5 A	146 gf	11.4 mm	0.449 in	Round (Pin Plunger)	Off-Mom	-40 °C	120 °C	Through Hole	6000 Cycles	125 V	0.043 "	1.1 mm	35 gf	10000000 Cycles	0.4 mm	0.015 "	0.008 in	0.2 mm
