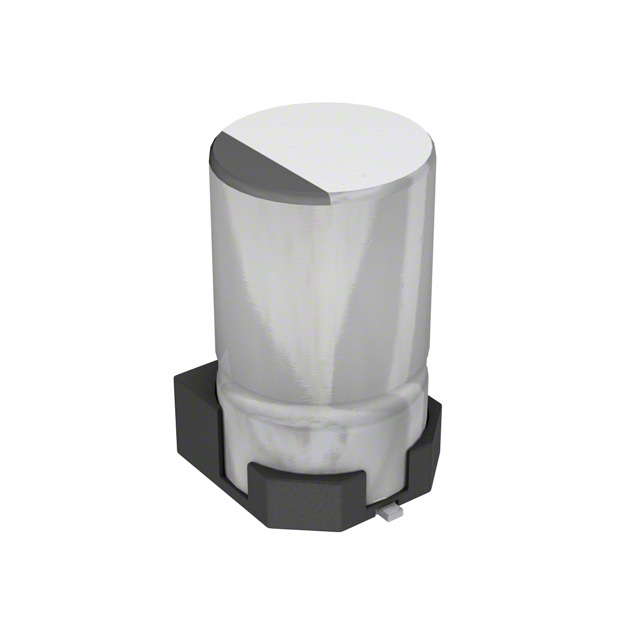

AVS475M25A12T-F
ObsoleteCornell Dubilier Knowles
CAP ALUM 4.7UF 20% 25V SMD
AVS475M25A12T-F
ObsoleteCornell Dubilier Knowles
CAP ALUM 4.7UF 20% 25V SMD
Description
General part information
AVS475M25A12T-F
4.7 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 56.5Ohm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | AVS475M25A12T-F |
|---|---|
| Applications | Bypass, Decoupling, Automotive |
| Capacitance | 4.7 µF |
| ESR (Equivalent Series Resistance) | 56.5 Ohm |
| Height - Seated (Max) | 0.213 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 20.4 mA, 12 mA |
| Size / Dimension Diameter | 0.118 in |
| Surface Mount Land Length | 0.13 in |
| Surface Mount Land Width | 0.13 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
