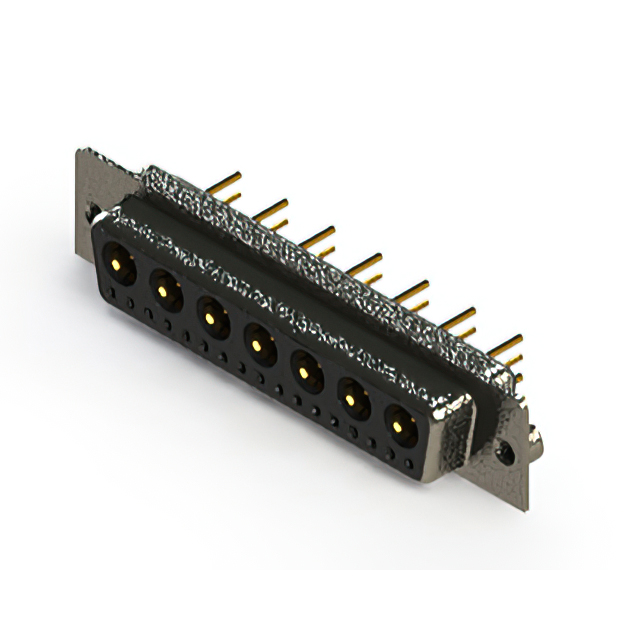

628-24W7624-7TA

Active

EDAC Inc.

CONN D-SUB RCPT 24POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-24W7624-7TA

Active

EDAC Inc.

CONN D-SUB RCPT 24POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-24W7624-7TA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions [custom]	17
Number of Positions [custom]	7
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D) - 24W7
Termination	Solder
Voltage Rating	125 VDC

628-24W Series

...

Part	Material Flammability Rating	Number of Rows	Contact Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Connector Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Type	Color	Termination	Mounting Type	Dielectric Material	Shell Size, Connector Layout	Voltage Rating	Features	Number of Positions	Flange Feature	Contact Finish Thickness	Current Rating (Amps)	Flange Feature [custom]	Flange Feature [custom]	Number of Positions [custom]	Number of Positions [custom]
EDAC Inc. 628-24W7624-2N6	UL94 V-0	2	Copper Alloy	Gold	0.76 Ám	30 Áin	Nickel Plated Steel	Combo D-Sub	Receptacle Female Sockets	-55 °C	125 °C	5 A 20 A	Signal and Power	Black	Solder	Through Hole	Polyester Thermoplastic	5 (DD D) - 24W7	125 VDC	Board Lock Shielded	24	4-40
EDAC Inc. 628-24W7624-3TE	UL94 V-0	2	Copper Alloy	Gold	0.76 Ám	30 Áin		Combo D-Sub	Receptacle Female Sockets	-55 °C	125 °C	5 A 30 A	Signal and Power	Black	Solder	Through Hole	Polyester Thermoplastic	5 (DD D) - 24W7	125 VDC	Board Lock Shielded	24	M3
EDAC Inc. 628-24W7622-4N1	UL94 V-0	2	Copper Alloy	Gold	0.76 Ám	30 Áin	Nickel Plated Steel	Combo D-Sub	Receptacle Female Sockets	-55 °C	125 °C	5 A 40 A	Signal and Power	Black		Free Hanging (In-Line)	Polyester Thermoplastic	5 (DD D) - 24W7	125 VDC	Shielded	24	Housing/Shell (Unthreaded)
EDAC Inc. 628-24W7224-1NC	UL94 V-0	2	Copper Alloy	Gold			Nickel Plated Steel	Combo D-Sub	Receptacle Female Sockets	-55 °C	125 °C		Signal and Power	Black	Solder	Through Hole	Polyester Thermoplastic	5 (DD D) - 24W7	125 VDC	Shielded	24		Flash	10A 5A	M3	M3
EDAC Inc. 628-24W7622-3TA	UL94 V-0	2	Copper Alloy	Gold	0.76 Ám	30 Áin		Combo D-Sub	Receptacle Female Sockets	-55 °C	125 °C	5 A 30 A	Signal and Power	Black		Free Hanging (In-Line)	Polyester Thermoplastic	5 (DD D) - 24W7	125 VDC	Shielded	24	Board Side (M3)
EDAC Inc. 628-24W7224-1N2	UL94 V-0	2	Copper Alloy	Gold			Nickel Plated Steel	Combo D-Sub	Receptacle Female Sockets	-55 °C	125 °C		Signal and Power	Black	Solder	Through Hole	Polyester Thermoplastic	5 (DD D) - 24W7	125 VDC	Shielded	24	4-40 Board Side	Flash	10A 5A
EDAC Inc. 628-24W7222-2NA	UL94 V-0	2	Copper Alloy	Gold			Nickel Plated Steel	Combo D-Sub	Receptacle Female Sockets	-55 °C	125 °C	5 A 20 A	Signal and Power	Black		Free Hanging (In-Line)	Polyester Thermoplastic	5 (DD D) - 24W7	125 VDC	Shielded	24	Board Side (M3)	Flash
EDAC Inc. 628-24W7624-2TD	UL94 V-0	2	Copper Alloy	Gold	0.76 Ám	30 Áin		Combo D-Sub	Receptacle Female Sockets	-55 °C	125 °C	5 A 20 A	Signal and Power	Black	Solder	Through Hole	Polyester Thermoplastic	5 (DD D) - 24W7	125 VDC	Board Lock Shielded	24	Board Side (M3)
EDAC Inc. 628-24W7624-7TA	UL94 V-0	2	Copper Alloy	Gold	0.76 Ám	30 Áin		Combo D-Sub	Receptacle Female Sockets	-55 °C	125 °C		Coax Signal	Black	Solder	Through Hole	Polyester Thermoplastic	5 (DD D) - 24W7	125 VDC	Shielded		Board Side (M3)					17	7
EDAC Inc. 628-24W7222-5N1	UL94 V-0	2	Copper Alloy	Gold			Nickel Plated Steel	Combo D-Sub	Receptacle Female Sockets	-55 °C	125 °C		Coax Signal	Black		Free Hanging (In-Line)	Polyester Thermoplastic	5 (DD D) - 24W7	125 VDC	Shielded		Housing/Shell (Unthreaded)	Flash				17	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	60	$ 43.35

Description

General part information

628-24W Series

24 (17 + 7 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
