2195835-3
ActiveTE Connectivity AMP Connectors
ANTENNAS ISM 868 / 915 MHZ ANTENNA
2195835-3
ActiveTE Connectivity AMP Connectors
ANTENNAS ISM 868 / 915 MHZ ANTENNA
Description
General part information
2195835-3

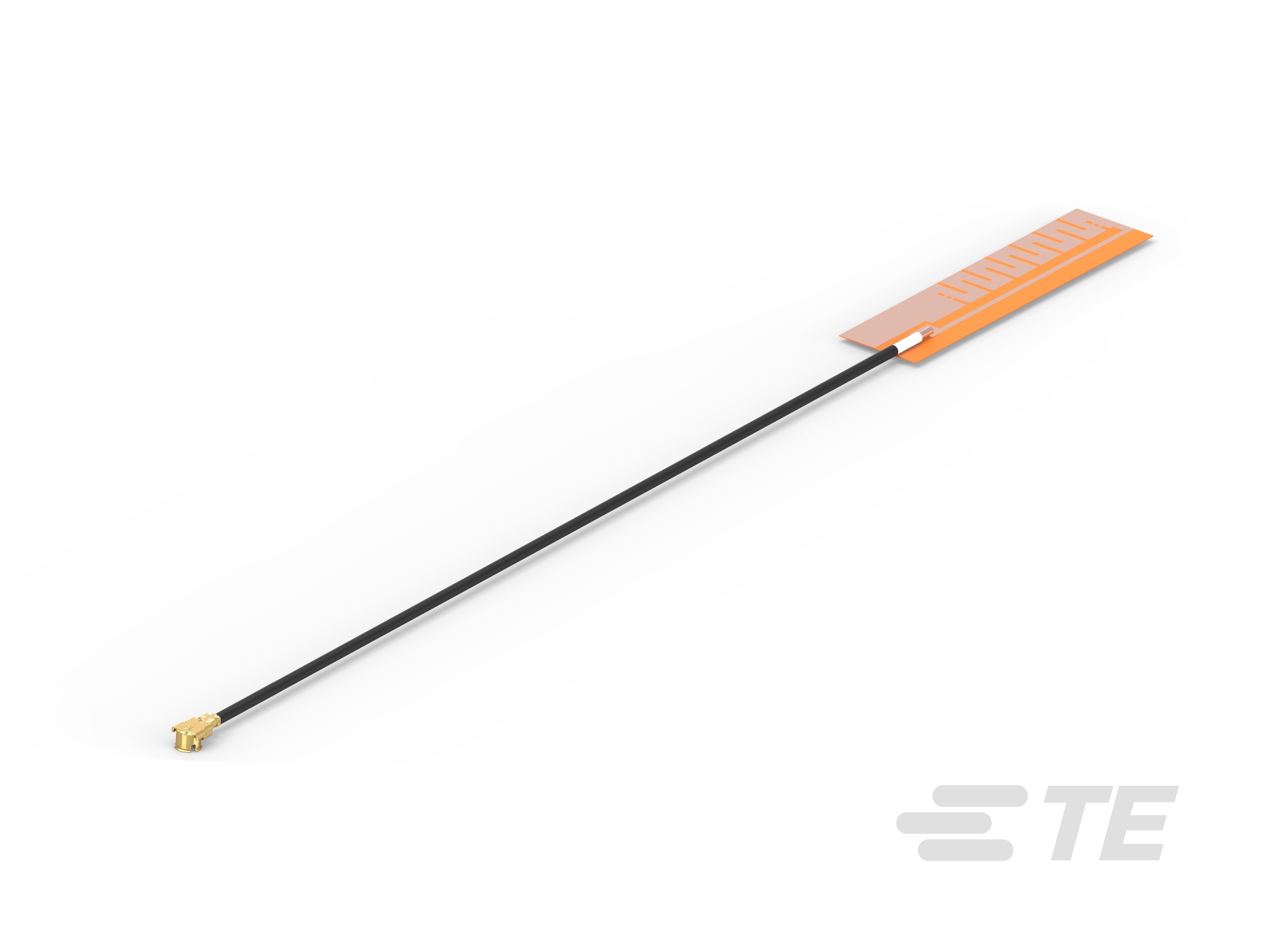

Flexible PCB (FPC) Antenna, Single Band, ISM / LoRaWAN / Zigbee, Internal/Embedded Mount, Adhesive Mount, MHF1 / U.FL / UMCC, Omnidirectional
Technical Specifications
Parameters and characteristics for this part
| Specification | 2195835-3 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | LoRaWAN, Zigbee™, ISM |
| Features | Cable, 150mm |
| Frequency (Band) | 915 MHz |
| Frequency (Center) | 868 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 928 MHz |
| Frequency Range (Min) | 863 MHz |
| Gain | 3 dBi |
| Height (Max) | 0.008 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Power - Max | 10 VA |
| RF Family/Standard | General ISM |
| Termination | U.FL, UMCC, MHF1, MHF |
| VSWR | 2.5 |
