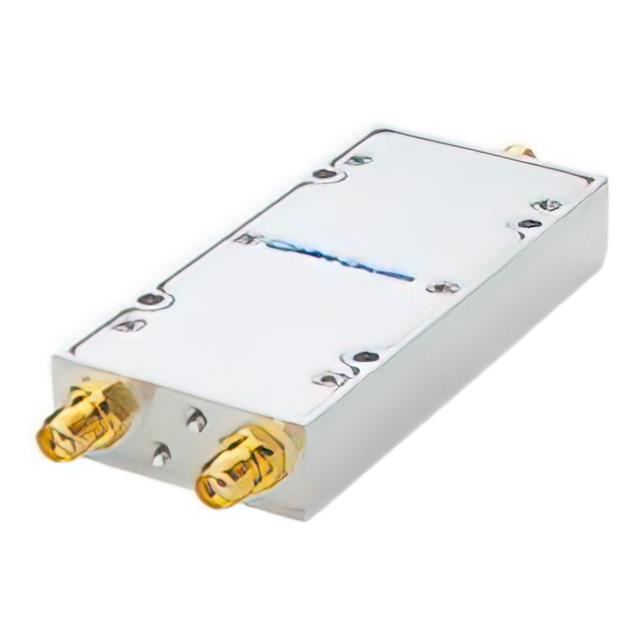

ZN2PD-4R753+
ActiveMini-Circuits
PWR SPLTR, 450 - 7500 MHZ, 50
ZN2PD-4R753+
ActiveMini-Circuits
PWR SPLTR, 450 - 7500 MHZ, 50
Description
General part information
ZN2PD-4R753+
RF Power Divider 450 MHz ~ 7.5 GHz Isolation (Min) 18dB, 6° Imbalance (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | ZN2PD-4R753+ |
|---|---|
| Frequency Range 1 (Max) | 7.5 GHz |
| Frequency Range 1 (Min) | 450 MHz |
| Imbalance (Max) | 6 ° |
| Insertion Loss | 0.8 dB |
| Isolation (Min) | 18 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.581 in |
| Size / Dimension Length | 3.252 in |
| Size / Dimension Width | 1.461 in |
