2441535-1
ActiveTE Connectivity AMP Connectors

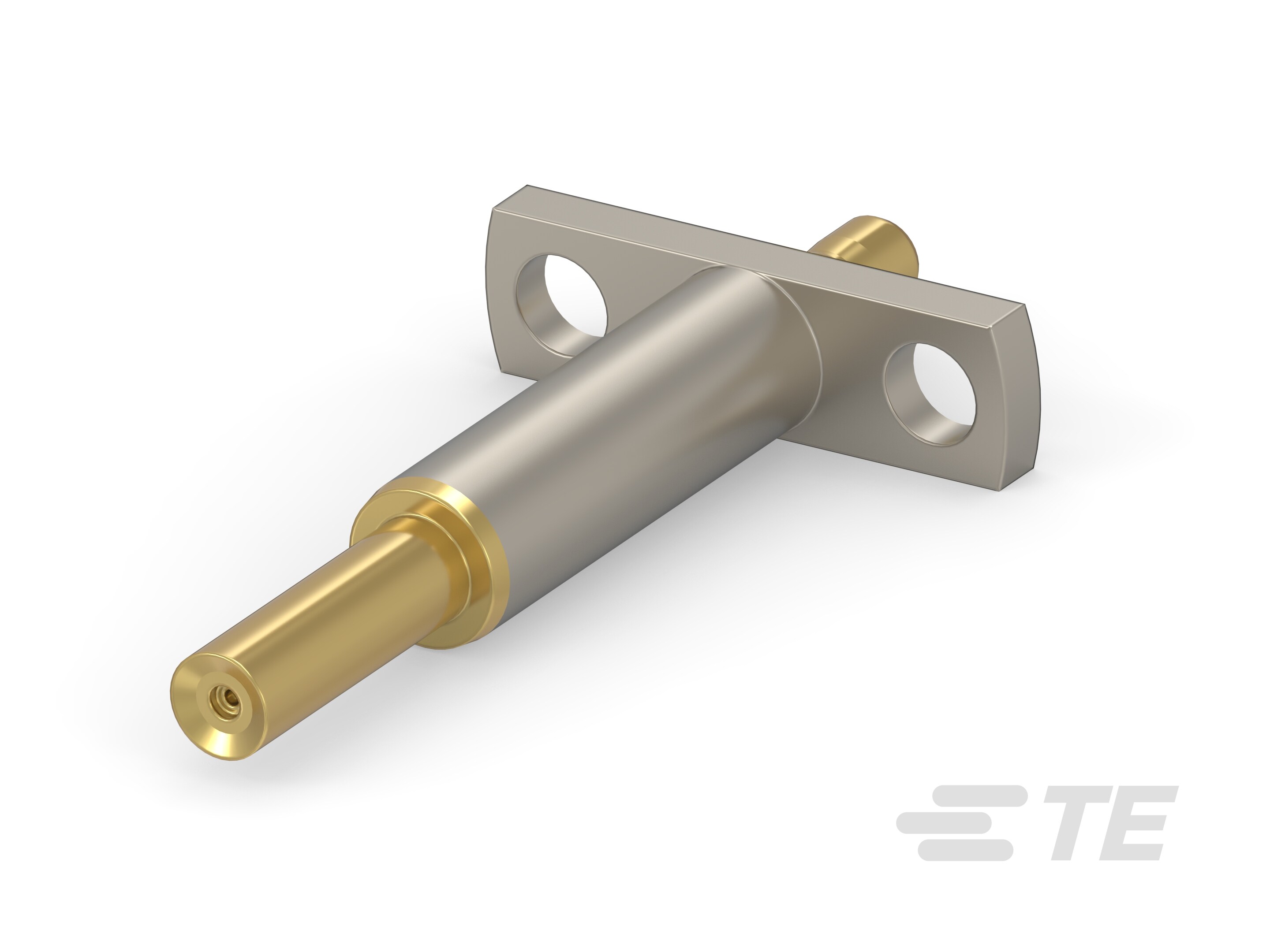

ML-51 J TO RF SWITCH 6 ADAPTOR BMRF
2441535-1
ActiveTE Connectivity AMP Connectors
ML-51 J TO RF SWITCH 6 ADAPTOR BMRF
Description
General part information
2441535-1
Adapter Coaxial Connector ML51 Jack, Female Socket To Coaxial Switch Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | 2441535-1 |
|---|---|
| Adapter Series | ML51 to Coaxial Switch |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold, Nickel |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, ML51 Jack |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | Coaxial Switch Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 12 Gbps |
| Impedance | 50 Ohm |
| Mating Cycles (Max) | 20000 cycles |
| Mating Cycles (Min) | 500 cycles |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Straight |
