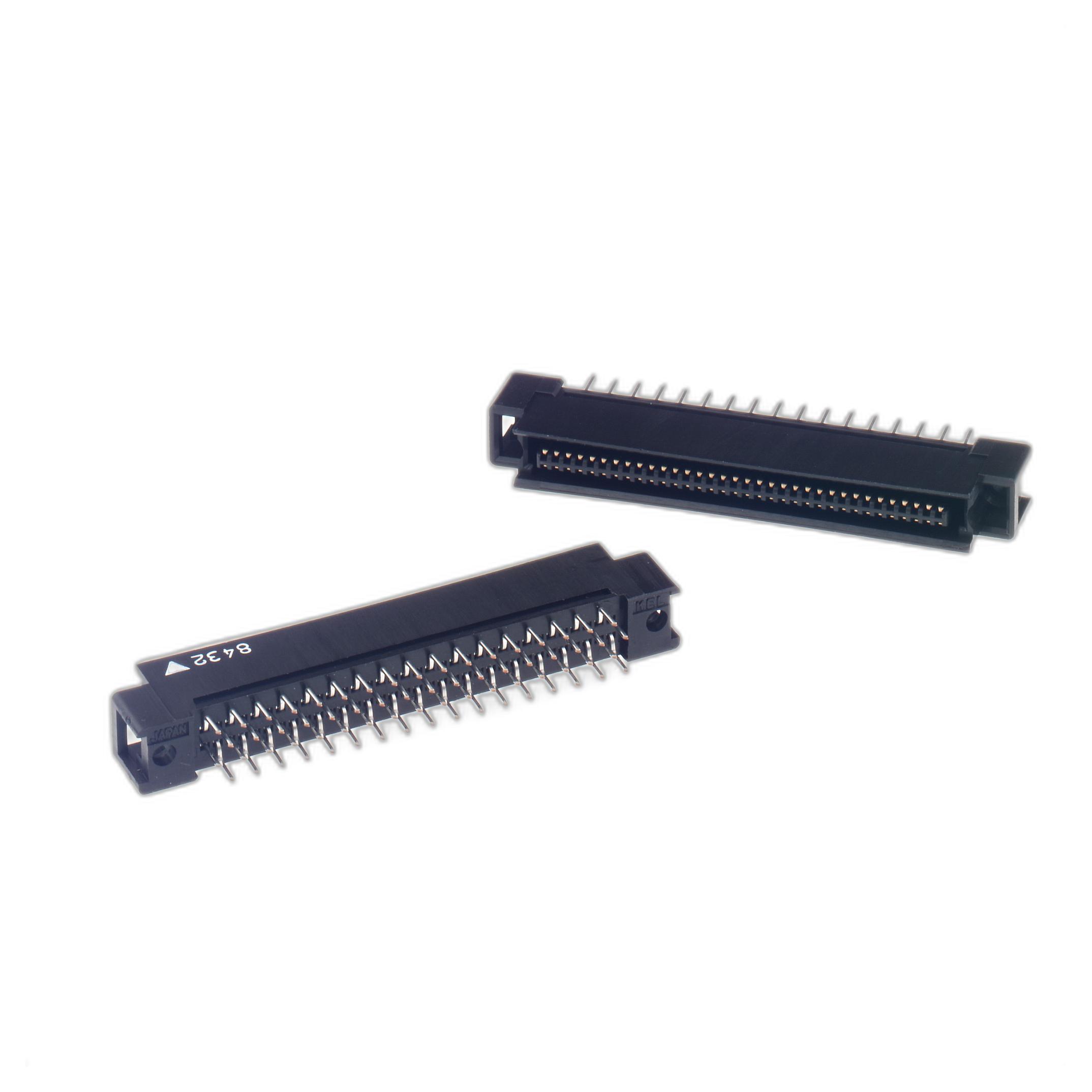

P50-050P1-S1-EA
Active3M Electronic Specialty
80000906224 P50-050P1-S1-EA=PAK50 CONNECTOR/ROHS
P50-050P1-S1-EA
Active3M Electronic Specialty
80000906224 P50-050P1-S1-EA=PAK50 CONNECTOR/ROHS
Description
General part information
P50-050P1-S1-EA
80000906224 P50-050P1-S1-EA=PAK50 CONNECTOR/ROHS
Technical Specifications
Parameters and characteristics for this part
| Specification | P50-050P1-S1-EA |
|---|---|
| Connector Type | Plug |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 µin |
| Contact Length - Post | 0.118 in |
| Contact Material | Phosphor Bronze |
| Contact Type | Center Strip Contact |
| Current Rating | 0.5 A |
| Fastening Type | Latch Holder |
| Insulation Color | Black |
| Insulation Height | 0.421 in |
| Insulation Material | Nylon, Glass Filled, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.05 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board, Board or Cable |
| Termination | Solder |
