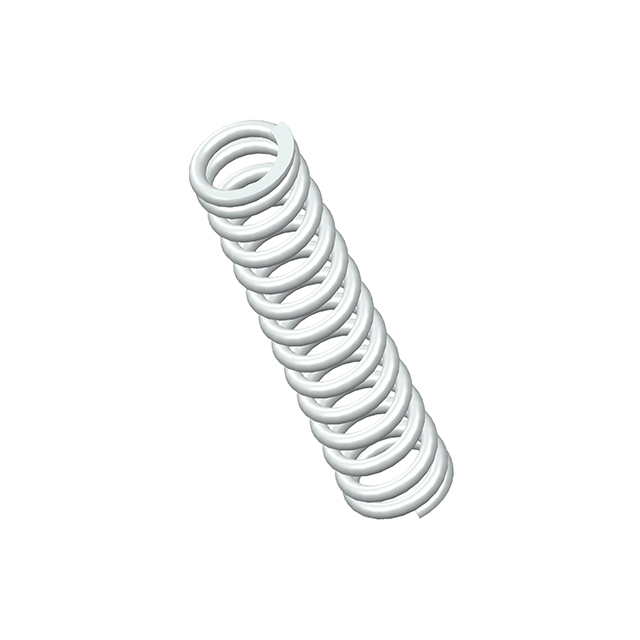

70957SCS
ActiveCentury Spring Corp
COMP O= .300,L= 1.38,W= .045
70957SCS
ActiveCentury Spring Corp
COMP O= .300,L= 1.38,W= .045
Description
General part information
70957SCS
COMP O= .300,L= 1.38,W= .045
Technical Specifications
Parameters and characteristics for this part
| Specification | 70957SCS |
|---|---|
| Diameter - Inside | 0.21 in |
| Diameter - Outside | 0.3 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 1.38 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 25 lbs/in |
| Type | Compression |
| Wire Diameter | 0.045 in |
