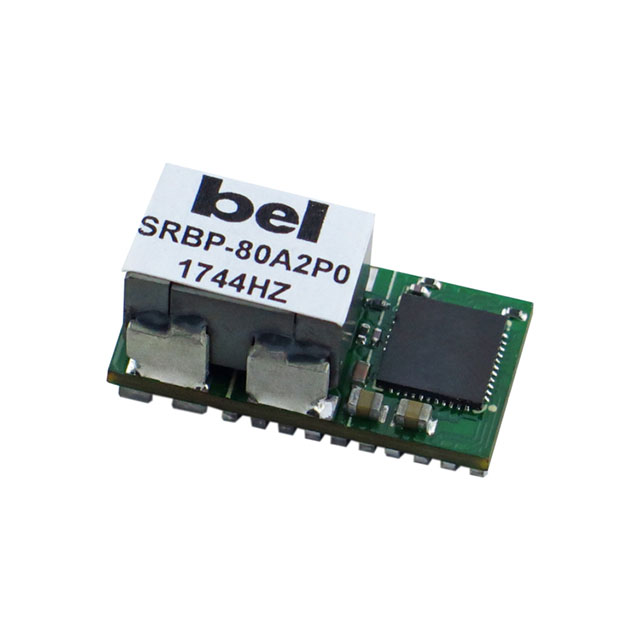

SRBP-80A2P0G
ActiveBel Fuse Inc.
DCDC 7.5-14VIN 0.6-5.2V 80A 200W
SRBP-80A2P0G
ActiveBel Fuse Inc.
DCDC 7.5-14VIN 0.6-5.2V 80A 200W
Description
General part information
SRBP-80A2P0G
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.2V 80A 7.5V - 14V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SRBP-80A2P0G |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 80 A |
| Efficiency | 90 % |
| Features | Remote Sense, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 28-SMD Module |
| Power (Watts) | 416 W |
| Size / Dimension Height | 0.48 in |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 0.5 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 14 V |
| Voltage - Input (Min) | 7.5 V |
| Voltage - Output 1 (Max) | 5.2 V |
| Voltage - Output 1 (Min) | 0.6 V |
