MAL216358221E3
ActiveVishay Dale

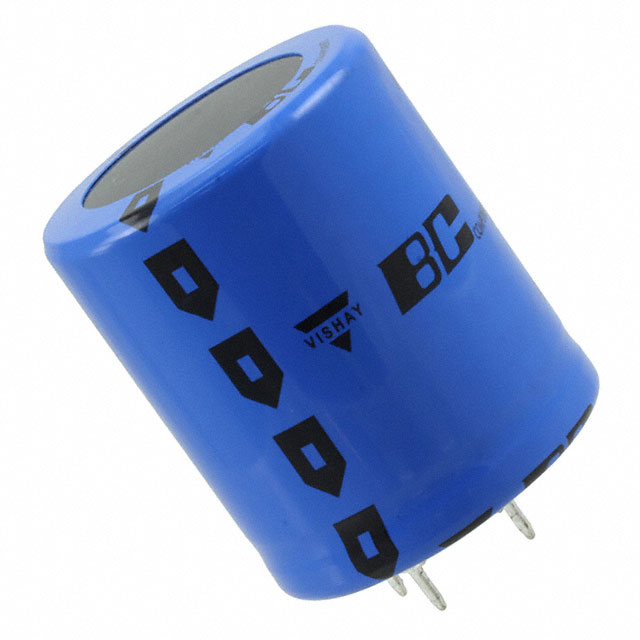

CAP ALUMINUM LYTIC 220UF 385V 20% (35 X 40MM) SOLDER PIN 0.525 OHM 1.44A 5000H 105°C CARDBOARD
MAL216358221E3
ActiveVishay Dale
CAP ALUMINUM LYTIC 220UF 385V 20% (35 X 40MM) SOLDER PIN 0.525 OHM 1.44A 5000H 105°C CARDBOARD
Description
General part information
MAL216358221E3
220 µF 385 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 525mOhm @ 100Hz 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL216358221E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 525 mOhm |
| Height - Seated (Max) | 1.772 in |
| Impedance | 405 mOhms |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current | 1.44 A |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 385 V |
