TC4-19LN+
ActiveMini-Circuits
TC XFMR / SURF MOUNT / ROHS
TC4-19LN+
ActiveMini-Circuits
TC XFMR / SURF MOUNT / ROHS
Description
General part information
TC4-19LN+

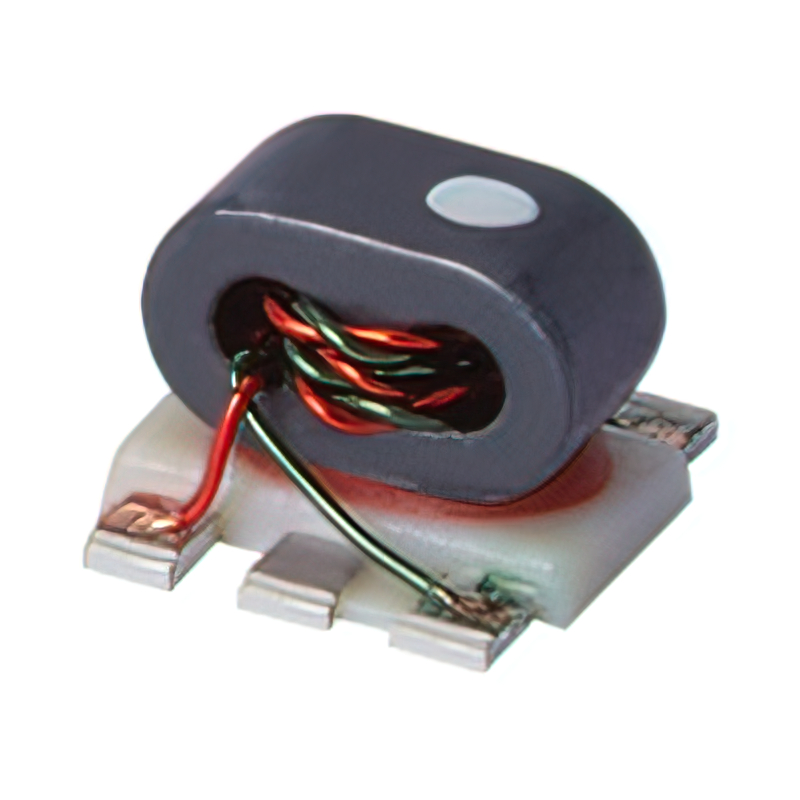

RF Balun 10MHz ~ 1.9GHz 1:4 6-SMD (5 Leads), Flat Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TC4-19LN+ |
|---|---|
| Frequency Range (Max) | 1.9 GHz |
| Frequency Range (Min) | 10 MHz |
| Impedance Ratio | 1:4 |
| Insertion Loss (Max) | 3 dB |
| Mounting Type | Surface Mount |
| Package Leads | 5 Leads |
| Package Name | 6-SMD |
| Phase Difference | 6 ° |
